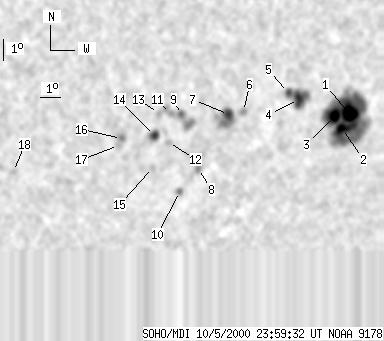

SOHO MDI 2000-10-05 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70 | 500 | 46 | 336 | -21.71 | 315.84 | 31.95 | 226.95 | 0.6730 | -787.1 | -268.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 288 | 13 | 199 | -21.65 | 318.73 | 34.84 | 229.60 | 0.6995 | -1208.1 | -467.4 | |
| 11 | -1 | 7 | -1 | -22.29 | 318.55 | 34.66 | 228.71 | 0.7026 | -826.2 | 999999 | |
| 10 | -1 | 7 | -1 | -21.73 | 317.99 | 34.10 | 228.92 | 0.6931 | -1346.3 | 999999 | |
| 14 | 48 | 9 | 32 | -20.86 | 315.97 | 32.08 | 228.29 | 0.6671 | -930.9 | -405.0 | |
| 3 | -4 | 2 | -4 | -20.52 | 315.40 | 31.51 | 228.21 | 0.6589 | 35.5 | 999999 | |
| 0 | 7 | 0 | 5 | -21.22 | 313.39 | 29.49 | 225.54 | 0.6454 | -512.0 | -450.4 | |
| 7 | 49 | 4 | 32 | -21.31 | 312.69 | 28.80 | 224.77 | 0.6396 | -834.4 | -217.6 | |
| 0 | 8 | 0 | 5 | -23.64 | 311.78 | 27.89 | 221.22 | 0.6525 | -279.0 | -263.3 | |
| 0 | 33 | 0 | 21 | -21.19 | 310.45 | 26.56 | 222.66 | 0.6174 | 737.0 | -12.1 | |
| 0 | 6 | 0 | 4 | -24.64 | 311.10 | 27.21 | 219.47 | 0.6561 | 788.0 | 660.9 | |
| 0 | 14 | 0 | 9 | -21.12 | 309.93 | 26.03 | 222.19 | 0.6119 | 801.0 | 757.9 | |
| 0 | 5 | 0 | 3 | -22.40 | 310.08 | 26.19 | 220.88 | 0.6258 | 691.0 | 534.4 | |
| 0 | 6 | 0 | 4 | -21.09 | 309.37 | 25.47 | 221.62 | 0.6064 | 802.0 | 706.9 | |
| 6 | 15 | 4 | 9 | -22.05 | 309.36 | 25.47 | 220.50 | 0.6159 | 928.2 | 684.1 | |
| 0 | 5 | 0 | 3 | -23.48 | 309.56 | 25.66 | 219.13 | 0.6318 | 306.0 | 366.2 | |
| 0 | 6 | 0 | 4 | -22.11 | 307.85 | 23.95 | 218.75 | 0.6032 | 786.0 | 821.1 | |
| 0 | 7 | 0 | 4 | -22.41 | 307.77 | 23.87 | 218.32 | 0.6056 | 594.0 | 534.8 | |
| 0 | 3 | 0 | 2 | -23.36 | 303.16 | 19.27 | 211.68 | 0.5791 | -183.0 | 64.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
