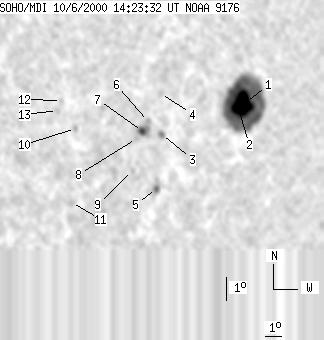

SOHO MDI 2000-10-06 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43 | 345 | 35 | 275 | -9.20 | 325.23 | 49.24 | 252.81 | 0.7844 | -1000.2 | -337.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-06 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 278 | 32 | 226 | -8.89 | 326.54 | 50.56 | 253.68 | 0.7973 | -1191.2 | -376.5 | |
| -1 | -1 | -1 | -1 | -9.10 | 326.15 | 50.16 | 253.30 | 0.7939 | 999999 | 999999 | |
| 0 | 7 | 0 | 5 | -9.76 | 321.72 | 45.74 | 250.86 | 0.7495 | -845.0 | -671.0 | |
| 0 | 5 | 0 | 3 | -8.09 | 321.40 | 45.41 | 252.88 | 0.7401 | -620.0 | -540.0 | |
| 0 | 13 | 0 | 10 | -11.96 | 321.87 | 45.89 | 248.15 | 0.7591 | -815.0 | -719.9 | |
| 0 | 4 | 0 | 3 | -9.18 | 320.89 | 44.91 | 251.28 | 0.7382 | -596.0 | -564.4 | |
| 4 | 15 | 3 | 11 | -9.55 | 320.62 | 44.64 | 250.68 | 0.7366 | 436.7 | 44.9 | |
| 0 | 4 | 0 | 3 | -9.81 | 320.33 | 44.35 | 250.22 | 0.7343 | 309.0 | 189.5 | |
| 0 | 3 | 0 | 2 | -11.11 | 320.34 | 44.36 | 248.56 | 0.7395 | -232.0 | -289.4 | |
| 0 | 4 | 0 | 3 | -9.15 | 316.95 | 40.97 | 249.59 | 0.6930 | 561.0 | 518.7 | |
| 0 | 7 | 0 | 5 | -12.16 | 317.24 | 41.26 | 245.70 | 0.7097 | 395.0 | 457.0 | |
| 0 | 3 | 0 | 2 | -7.96 | 316.07 | 40.09 | 250.82 | 0.6776 | 622.0 | 506.1 | |
| 0 | 2 | 0 | 2 | -8.35 | 315.91 | 39.93 | 250.20 | 0.6773 | 228.0 | 370.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
