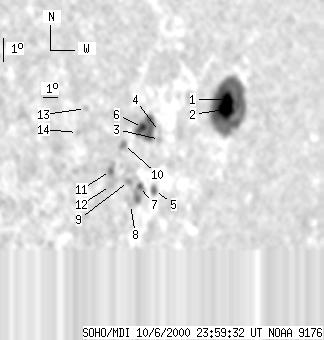

SOHO MDI 2000-10-06 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 387 | 33 | 343 | -9.38 | 324.32 | 53.61 | 254.01 | 0.8277 | -760.0 | -282.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-06 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 241 | 27 | 222 | -8.65 | 326.34 | 55.64 | 255.49 | 0.8451 | -966.8 | -310.0 | |
| -1 | -1 | -1 | -1 | -9.03 | 326.22 | 55.51 | 255.01 | 0.8449 | 999999 | 999999 | |
| 0 | 4 | 0 | 4 | -9.87 | 322.15 | 51.44 | 252.81 | 0.8087 | -758.0 | -637.1 | |
| 0 | 2 | 0 | 2 | -9.54 | 322.08 | 51.37 | 253.18 | 0.8071 | -521.0 | -530.2 | |
| 1 | 8 | 1 | 7 | -11.94 | 322.34 | 51.63 | 250.42 | 0.8164 | -408.2 | -375.9 | |
| 4 | 58 | 3 | 47 | -9.28 | 320.96 | 50.25 | 253.13 | 0.7952 | 496.0 | -129.2 | |
| 2 | 28 | 2 | 24 | -11.69 | 321.32 | 50.61 | 250.36 | 0.8059 | -625.0 | -669.3 | |
| 0 | 3 | 0 | 3 | -12.39 | 320.94 | 50.23 | 249.39 | 0.8043 | -353.0 | -394.8 | |
| 0 | 6 | 0 | 5 | -11.42 | 320.57 | 49.86 | 250.40 | 0.7977 | -431.0 | -511.1 | |
| 0 | 9 | 0 | 7 | -9.87 | 319.92 | 49.21 | 252.05 | 0.7864 | 477.0 | 270.9 | |
| 0 | 11 | 0 | 9 | -10.87 | 319.34 | 48.64 | 250.62 | 0.7836 | 296.0 | 276.2 | |
| 0 | 10 | 0 | 8 | -11.49 | 319.48 | 48.78 | 249.92 | 0.7871 | -253.0 | -219.5 | |
| 0 | 4 | 0 | 3 | -8.21 | 317.38 | 46.67 | 253.21 | 0.7544 | 332.0 | 288.5 | |
| 0 | 3 | 0 | 2 | -9.15 | 317.07 | 46.37 | 251.91 | 0.7541 | 336.0 | 278.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
