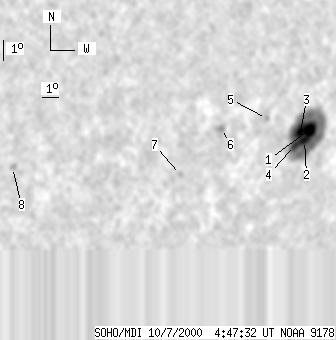

SOHO MDI 2000-10-07 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40 | 233 | 37 | 208 | -22.01 | 317.61 | 49.54 | 238.04 | 0.8326 | -697.8 | -265.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-07 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 212 | 16 | 192 | -21.79 | 318.47 | 50.40 | 238.74 | 0.8391 | -634.3 | -272.0 | |
| 9 | -1 | 8 | -1 | -22.26 | 318.37 | 50.30 | 238.18 | 0.8401 | -528.5 | 999999 | |
| 5 | -1 | 5 | -1 | -21.82 | 317.89 | 49.82 | 238.44 | 0.8346 | -1196.1 | 999999 | |
| 8 | -1 | 8 | -1 | -22.43 | 317.79 | 49.72 | 237.74 | 0.8362 | -733.5 | 999999 | |
| 0 | 4 | 0 | 3 | -21.04 | 315.39 | 47.32 | 238.12 | 0.8103 | -308.0 | -415.9 | |
| 0 | 8 | 0 | 6 | -21.25 | 312.77 | 44.70 | 236.52 | 0.7882 | -497.0 | -397.8 | |
| 0 | 4 | 0 | 3 | -23.13 | 311.11 | 43.04 | 233.49 | 0.7833 | -267.0 | -191.6 | |
| 0 | 5 | 0 | 4 | -22.14 | 301.74 | 33.67 | 228.16 | 0.6916 | 310.0 | 308.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
