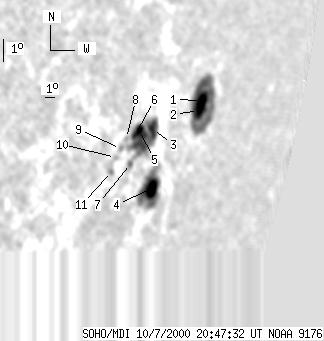

SOHO MDI 2000-10-07 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71 | 396 | 86 | 489 | -9.84 | 323.89 | 64.61 | 256.33 | 0.9172 | -421.1 | -65.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-07 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 161 | 43 | 218 | -8.72 | 326.40 | 67.12 | 258.04 | 0.9325 | -622.1 | -90.9 | |
| -1 | -1 | -1 | -1 | -9.11 | 326.24 | 66.96 | 257.60 | 0.9319 | 999999 | 999999 | |
| 12 | 115 | 13 | 130 | -9.44 | 322.05 | 62.77 | 256.38 | 0.9044 | -239.2 | 178.4 | |
| 16 | 97 | 19 | 117 | -11.90 | 322.89 | 63.61 | 253.92 | 0.9140 | -640.0 | -329.7 | |
| 8 | -3 | 8 | -3 | -9.37 | 320.92 | 61.64 | 256.20 | 0.8959 | 508.7 | 999999 | |
| 3 | -3 | 3 | -3 | -9.53 | 320.55 | 61.27 | 255.94 | 0.8934 | 380.4 | 999999 | |
| 0 | 6 | 0 | 7 | -10.66 | 320.59 | 61.31 | 254.71 | 0.8956 | -274.0 | -250.6 | |
| 0 | 3 | 0 | 3 | -9.59 | 319.91 | 60.64 | 255.72 | 0.8887 | 156.0 | 220.1 | |
| 0 | 5 | 0 | 5 | -9.95 | 319.54 | 60.27 | 255.23 | 0.8864 | 357.0 | 384.2 | |
| 0 | 4 | 0 | 4 | -10.28 | 319.25 | 59.97 | 254.79 | 0.8847 | 404.0 | 297.0 | |
| 0 | 5 | 0 | 5 | -10.83 | 319.11 | 59.83 | 254.15 | 0.8846 | 241.0 | 229.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
