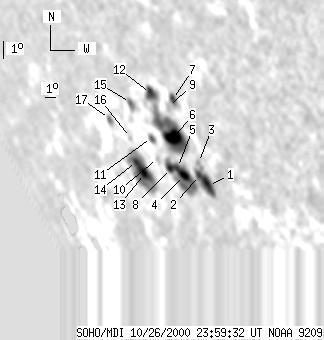

SOHO MDI 2000-10-26 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85 | 428 | 95 | 491 | -22.76 | 307.41 | -59.64 | 118.09 | 0.9032 | -401.1 | -70.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-26 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 41 | 17 | 44 | -24.12 | 310.08 | -56.97 | 120.39 | 0.8890 | -586.2 | -380.7 | |
| 3 | -1 | 3 | -1 | -23.72 | 309.65 | -57.40 | 119.82 | 0.8909 | -464.4 | 999999 | |
| 0 | 4 | 0 | 4 | -23.13 | 309.97 | -57.08 | 119.30 | 0.8871 | -312.0 | -356.1 | |
| 10 | 80 | 12 | 91 | -23.81 | 308.38 | -58.67 | 119.50 | 0.8997 | -669.1 | -92.3 | |
| 3 | -4 | 4 | -4 | -23.49 | 308.04 | -59.01 | 119.05 | 0.9012 | -404.8 | 999999 | |
| 22 | 162 | 24 | 177 | -22.16 | 308.65 | -58.40 | 117.83 | 0.8939 | -738.1 | -3.9 | |
| 3 | 12 | 3 | 13 | -20.48 | 309.62 | -57.42 | 116.33 | 0.8828 | 612.5 | 534.2 | |
| 6 | -4 | 6 | -4 | -23.58 | 307.39 | -59.66 | 118.94 | 0.9056 | -55.2 | 999999 | |
| 0 | 4 | 0 | 4 | -20.81 | 309.11 | -57.93 | 116.53 | 0.8873 | 399.0 | 373.0 | |
| 0 | 3 | 0 | 4 | -23.22 | 306.56 | -60.48 | 118.30 | 0.9101 | -182.0 | -102.3 | |
| 1 | 7 | 1 | 9 | -22.30 | 306.73 | -60.32 | 117.39 | 0.9071 | -203.0 | -151.2 | |
| 8 | -6 | 8 | -6 | -20.35 | 307.97 | -59.08 | 115.68 | 0.8944 | 797.0 | 999999 | |
| 7 | 93 | 9 | 118 | -24.00 | 304.78 | -62.27 | 118.60 | 0.9227 | -545.5 | -135.4 | |
| 5 | -13 | 7 | -13 | -23.51 | 304.46 | -62.59 | 117.99 | 0.9236 | -430.0 | 999999 | |
| 1 | 12 | 1 | 14 | -20.88 | 305.95 | -61.10 | 115.65 | 0.9092 | 609.7 | 536.3 | |
| 0 | 2 | 0 | 2 | -22.45 | 304.78 | -62.27 | 116.98 | 0.9197 | -274.0 | -179.0 | |
| 0 | 8 | 0 | 11 | -21.75 | 303.40 | -63.65 | 115.88 | 0.9267 | -421.0 | -476.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
