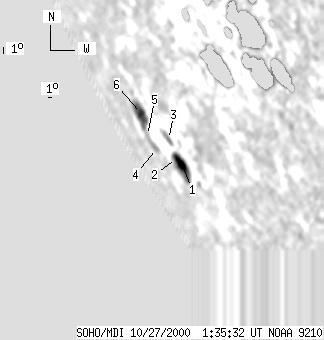

SOHO MDI 2000-10-27 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 105 | 33 | 236 | -28.00 | 293.26 | -72.91 | 120.12 | 0.9765 | -106.1 | -117.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 38 | 14 | 79 | -29.11 | 294.78 | -71.39 | 121.53 | 0.9725 | 73.2 | -46.5 | |
| 2 | -1 | 4 | -1 | -28.82 | 294.41 | -71.76 | 121.17 | 0.9735 | -113.5 | 999999 | |
| 0 | 12 | 0 | 24 | -27.94 | 294.73 | -71.44 | 120.35 | 0.9716 | 421.0 | 276.4 | |
| 0 | 10 | 0 | 25 | -28.59 | 291.76 | -74.41 | 120.42 | 0.9817 | -185.0 | -242.6 | |
| 0 | 5 | 0 | 12 | -28.05 | 291.33 | -74.84 | 119.80 | 0.9825 | -380.0 | -302.1 | |
| 6 | 40 | 15 | 96 | -26.99 | 292.35 | -73.82 | 118.93 | 0.9788 | -273.7 | -217.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
