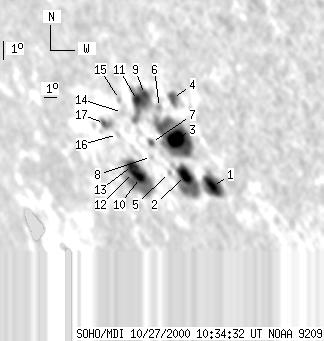

SOHO MDI 2000-10-27 10:34:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101 | 522 | 99 | 506 | -22.55 | 307.31 | -53.92 | 119.79 | 0.8618 | -467.3 | -73.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 10:34:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 53 | 18 | 49 | -24.00 | 310.00 | -51.23 | 122.43 | 0.8461 | -782.5 | -512.5 | |
| 15 | 77 | 15 | 73 | -23.63 | 308.35 | -52.89 | 121.36 | 0.8577 | -808.8 | -196.2 | |
| 24 | 154 | 22 | 144 | -22.07 | 308.52 | -52.71 | 119.72 | 0.8511 | -949.1 | -225.8 | |
| 4 | 19 | 3 | 17 | -20.29 | 309.23 | -52.01 | 118.01 | 0.8395 | 816.5 | 609.6 | |
| 0 | 3 | 0 | 3 | -23.58 | 307.24 | -54.00 | 120.87 | 0.8659 | 0.0 | -49.5 | |
| 0 | 5 | 0 | 5 | -20.74 | 308.11 | -53.12 | 118.10 | 0.8501 | 440.0 | 439.9 | |
| 1 | 6 | 1 | 6 | -22.33 | 306.68 | -54.55 | 119.31 | 0.8662 | -288.3 | -263.8 | |
| 0 | 3 | 0 | 3 | -22.96 | 306.31 | -54.93 | 119.85 | 0.8709 | -341.0 | -298.1 | |
| 4 | 73 | 4 | 70 | -20.25 | 307.32 | -53.92 | 117.26 | 0.8550 | 942.6 | 602.2 | |
| 8 | 105 | 9 | 111 | -23.97 | 304.84 | -56.40 | 120.41 | 0.8845 | -729.3 | -138.6 | |
| 10 | -9 | 10 | -9 | -20.55 | 306.67 | -54.57 | 117.35 | 0.8611 | 963.0 | 999999 | |
| 15 | -10 | 16 | -10 | -23.78 | 304.42 | -56.81 | 120.07 | 0.8868 | -512.4 | 999999 | |
| -12 | -10 | -12 | -10 | -23.47 | 304.56 | -56.68 | 119.78 | 0.8851 | 999999 | 999999 | |
| 0 | 3 | 0 | 3 | -21.16 | 305.24 | -56.00 | 117.52 | 0.8738 | 501.0 | 464.6 | |
| 0 | 4 | 0 | 4 | -20.60 | 305.33 | -55.91 | 116.95 | 0.8716 | 580.0 | 503.9 | |
| 0 | 3 | 0 | 3 | -22.16 | 304.25 | -56.99 | 118.27 | 0.8838 | -345.0 | -206.4 | |
| 1 | 14 | 1 | 15 | -21.75 | 303.50 | -57.73 | 117.58 | 0.8880 | -693.0 | -301.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
