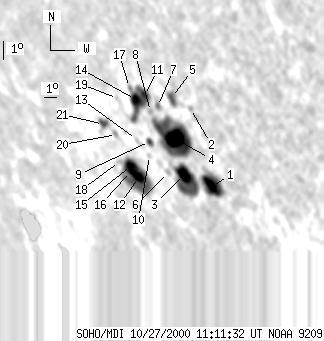

SOHO MDI 2000-10-27 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95 | 509 | 90 | 487 | -22.58 | 307.38 | -53.52 | 119.98 | 0.8587 | -478.2 | -107.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 53 | 18 | 48 | -24.02 | 309.99 | -50.91 | 122.59 | 0.8436 | -768.2 | -473.4 | |
| 0 | 3 | 0 | 3 | -20.65 | 310.30 | -50.60 | 118.99 | 0.8288 | -33.0 | -51.6 | |
| 14 | 80 | 14 | 75 | -23.61 | 308.37 | -52.53 | 121.48 | 0.8548 | -827.8 | -210.9 | |
| 22 | 154 | 20 | 143 | -22.05 | 308.54 | -52.36 | 119.84 | 0.8482 | -959.3 | -241.9 | |
| 0 | 16 | 0 | 14 | -20.26 | 309.23 | -51.67 | 118.12 | 0.8366 | 758.0 | 632.1 | |
| 0 | 3 | 0 | 3 | -23.60 | 307.25 | -53.65 | 121.02 | 0.8633 | -135.0 | -65.3 | |
| 0 | 6 | 0 | 6 | -20.72 | 308.06 | -52.84 | 118.18 | 0.8478 | 458.0 | 447.3 | |
| 0 | 3 | 0 | 3 | -20.98 | 307.44 | -53.45 | 118.23 | 0.8535 | 507.0 | 544.9 | |
| 1 | 8 | 1 | 7 | -22.31 | 306.64 | -54.26 | 119.39 | 0.8639 | -283.5 | -259.2 | |
| 0 | 1 | 0 | 1 | -22.94 | 306.27 | -54.62 | 119.94 | 0.8686 | -328.0 | -335.1 | |
| 6 | 56 | 5 | 53 | -20.31 | 307.37 | -53.53 | 117.46 | 0.8521 | 859.4 | 618.5 | |
| 6 | 100 | 7 | 105 | -23.99 | 304.79 | -56.11 | 120.53 | 0.8825 | -654.4 | -175.0 | |
| 0 | 2 | 0 | 2 | -22.29 | 305.71 | -55.19 | 119.03 | 0.8709 | -274.0 | -221.7 | |
| 10 | -11 | 9 | -11 | -20.53 | 306.62 | -54.28 | 117.43 | 0.8587 | 968.6 | 999999 | |
| 12 | -12 | 12 | -12 | -23.49 | 304.59 | -56.31 | 119.92 | 0.8825 | -613.1 | 999999 | |
| 4 | -12 | 4 | -12 | -23.77 | 304.32 | -56.57 | 120.13 | 0.8851 | -137.2 | 999999 | |
| 0 | 3 | 0 | 3 | -20.03 | 306.45 | -54.44 | 116.83 | 0.8586 | 322.0 | 346.1 | |
| 0 | 2 | 0 | 2 | -23.38 | 303.73 | -57.16 | 119.51 | 0.8882 | 166.0 | 98.4 | |
| 0 | 2 | 0 | 2 | -20.58 | 305.30 | -55.60 | 117.03 | 0.8692 | 520.0 | 454.7 | |
| 0 | 5 | 0 | 5 | -22.18 | 304.28 | -56.62 | 118.41 | 0.8811 | -373.0 | -163.0 | |
| 0 | 12 | 0 | 12 | -21.81 | 303.51 | -57.39 | 117.76 | 0.8857 | -732.0 | -424.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
