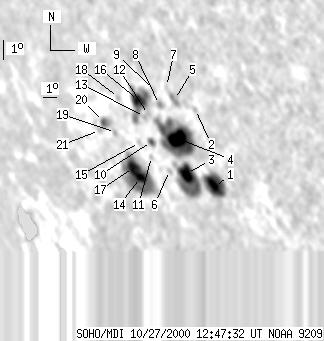

SOHO MDI 2000-10-27 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104 | 547 | 98 | 517 | -22.65 | 307.22 | -52.80 | 120.33 | 0.8534 | -516.0 | -113.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 57 | 20 | 51 | -24.01 | 309.98 | -50.04 | 122.96 | 0.8366 | -731.1 | -518.4 | |
| 0 | 3 | 0 | 3 | -20.68 | 310.38 | -49.64 | 119.42 | 0.8206 | -158.0 | -137.2 | |
| 17 | 89 | 16 | 83 | -23.55 | 308.35 | -51.67 | 121.76 | 0.8479 | -806.3 | -183.7 | |
| 24 | 146 | 22 | 132 | -22.03 | 308.55 | -51.47 | 120.17 | 0.8409 | -976.5 | -267.6 | |
| 0 | 11 | 0 | 10 | -20.34 | 309.18 | -50.84 | 118.53 | 0.8298 | 608.0 | 574.3 | |
| 0 | 4 | 0 | 3 | -23.50 | 307.21 | -52.81 | 121.24 | 0.8566 | -4.0 | -89.4 | |
| 0 | 1 | 0 | 1 | -19.81 | 308.89 | -51.13 | 117.82 | 0.8304 | 497.0 | 384.0 | |
| 0 | 6 | 0 | 6 | -20.62 | 308.05 | -51.97 | 118.40 | 0.8403 | 414.0 | 397.3 | |
| 0 | 3 | 0 | 3 | -20.00 | 307.94 | -52.08 | 117.66 | 0.8391 | 697.0 | 666.5 | |
| 1 | 7 | 1 | 7 | -22.29 | 306.63 | -53.39 | 119.70 | 0.8572 | -288.0 | -302.1 | |
| 0 | 2 | 0 | 2 | -22.96 | 306.24 | -53.77 | 120.28 | 0.8622 | -202.0 | -205.5 | |
| 0 | 2 | 0 | 2 | -21.12 | 307.05 | -52.97 | 118.56 | 0.8500 | 527.0 | 541.5 | |
| 0 | 2 | 0 | 2 | -21.22 | 306.72 | -53.30 | 118.56 | 0.8531 | 539.0 | 575.3 | |
| 9 | 129 | 9 | 131 | -23.97 | 304.83 | -55.19 | 120.84 | 0.8758 | -723.2 | -159.2 | |
| 0 | 2 | 0 | 2 | -22.40 | 305.71 | -54.31 | 119.47 | 0.8645 | -347.0 | -291.9 | |
| 15 | 62 | 14 | 58 | -20.55 | 306.65 | -53.37 | 117.79 | 0.8515 | 948.8 | 593.7 | |
| 15 | -14 | 15 | -14 | -23.56 | 304.57 | -55.45 | 120.30 | 0.8765 | -616.5 | 999999 | |
| 0 | 4 | 0 | 4 | -20.52 | 305.25 | -54.77 | 117.25 | 0.8626 | 518.0 | 459.7 | |
| 0 | 3 | 0 | 3 | -22.09 | 304.14 | -55.88 | 118.56 | 0.8754 | -298.0 | -220.7 | |
| 1 | 11 | 1 | 11 | -21.66 | 303.49 | -56.53 | 117.89 | 0.8791 | -611.3 | -345.2 | |
| 0 | 3 | 0 | 3 | -22.09 | 302.92 | -57.10 | 118.15 | 0.8843 | -470.0 | -465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
