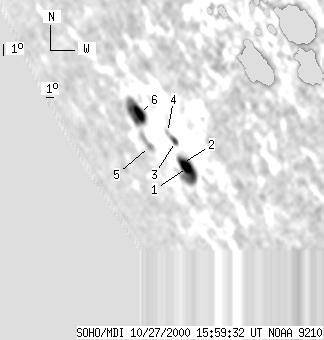

SOHO MDI 2000-10-27 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 120 | 31 | 181 | -28.17 | 292.99 | -65.27 | 122.04 | 0.9459 | 124.0 | -22.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 48 | 10 | 69 | -29.29 | 294.47 | -63.79 | 123.57 | 0.9407 | 331.3 | 121.1 | |
| 2 | -1 | 3 | -1 | -29.13 | 294.14 | -64.12 | 123.32 | 0.9420 | 252.5 | 999999 | |
| 0 | 7 | 0 | 10 | -28.11 | 294.59 | -63.67 | 122.40 | 0.9379 | 428.0 | 399.9 | |
| 0 | 1 | 0 | 2 | -27.73 | 294.20 | -64.06 | 121.91 | 0.9392 | 423.0 | 430.5 | |
| 0 | 15 | 0 | 25 | -28.59 | 291.25 | -67.01 | 122.01 | 0.9546 | -299.0 | -280.6 | |
| 11 | 49 | 18 | 75 | -27.06 | 292.04 | -66.22 | 120.65 | 0.9487 | -14.5 | -136.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
