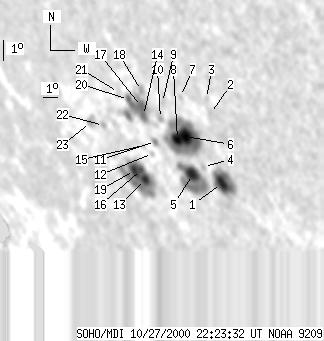

SOHO MDI 2000-10-27 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86 | 557 | 70 | 467 | -22.67 | 307.26 | -47.48 | 122.63 | 0.8095 | -703.1 | -206.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-27 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 64 | 10 | 52 | -23.91 | 309.95 | -44.80 | 125.36 | 0.7922 | -957.4 | -573.8 | |
| 0 | 3 | 0 | 2 | -20.87 | 310.54 | -44.21 | 122.18 | 0.7721 | -309.0 | -187.2 | |
| 0 | 3 | 0 | 2 | -20.23 | 310.54 | -44.20 | 121.43 | 0.7690 | 517.0 | 403.5 | |
| 0 | 5 | 0 | 4 | -23.22 | 309.17 | -45.58 | 124.18 | 0.7956 | -431.0 | -409.1 | |
| 15 | 92 | 12 | 76 | -23.62 | 308.32 | -46.42 | 124.20 | 0.8048 | -1017.9 | -273.9 | |
| 15 | 155 | 12 | 126 | -21.97 | 308.63 | -46.12 | 122.48 | 0.7946 | -1404.9 | -450.7 | |
| 0 | 3 | 0 | 3 | -20.24 | 309.02 | -45.72 | 120.68 | 0.7834 | 649.0 | 508.7 | |
| 10 | -6 | 8 | -6 | -22.13 | 308.08 | -46.67 | 122.39 | 0.8003 | -841.6 | 999999 | |
| 0 | 6 | 0 | 4 | -20.57 | 307.82 | -46.93 | 120.48 | 0.7959 | 209.0 | 241.3 | |
| 0 | 8 | 0 | 6 | -21.27 | 307.40 | -47.34 | 121.10 | 0.8026 | -284.0 | -28.3 | |
| 0 | 6 | 0 | 5 | -22.31 | 306.64 | -48.11 | 121.91 | 0.8136 | -513.0 | -435.5 | |
| 0 | 2 | 0 | 2 | -22.85 | 306.19 | -48.56 | 122.32 | 0.8196 | -439.0 | -371.9 | |
| 5 | 114 | 4 | 102 | -24.04 | 305.14 | -49.61 | 123.16 | 0.8331 | -941.9 | -206.1 | |
| 4 | 66 | 3 | 56 | -21.21 | 306.38 | -48.37 | 120.55 | 0.8114 | 742.8 | 664.6 | |
| 0 | 1 | 0 | 1 | -22.53 | 305.77 | -48.98 | 121.77 | 0.8219 | -255.0 | -255.0 | |
| 5 | -13 | 4 | -13 | -23.61 | 305.10 | -49.65 | 122.67 | 0.8317 | -1062.9 | 999999 | |
| 7 | -14 | 6 | -14 | -20.83 | 306.42 | -48.33 | 120.14 | 0.8095 | 746.8 | 999999 | |
| 0 | 7 | 0 | 6 | -20.13 | 306.71 | -48.04 | 119.47 | 0.8041 | 884.0 | 691.4 | |
| 10 | -13 | 9 | -13 | -23.69 | 304.60 | -50.15 | 122.54 | 0.8361 | -644.6 | 999999 | |
| 3 | -14 | 2 | -14 | -20.58 | 305.71 | -49.04 | 119.54 | 0.8148 | 813.4 | 999999 | |
| 0 | 3 | 0 | 3 | -20.32 | 305.19 | -49.56 | 119.02 | 0.8184 | 194.0 | 384.5 | |
| 0 | 5 | 0 | 4 | -21.83 | 303.51 | -51.24 | 120.01 | 0.8382 | -607.0 | -509.1 | |
| 0 | 14 | 0 | 13 | -21.76 | 302.67 | -52.08 | 119.60 | 0.8448 | -528.0 | -503.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
