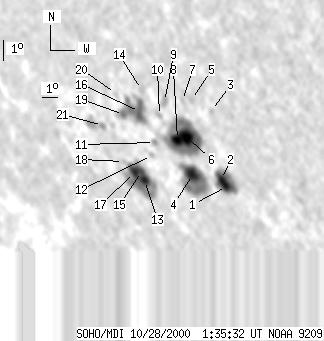

SOHO MDI 2000-10-28 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97 | 556 | 79 | 453 | -22.56 | 307.21 | -45.78 | 123.34 | 0.7942 | -637.1 | -181.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 57 | 5 | 44 | -23.98 | 310.09 | -42.90 | 126.47 | 0.7757 | -709.3 | -576.6 | |
| 6 | -1 | 5 | -1 | -23.68 | 309.93 | -43.06 | 126.04 | 0.7756 | -732.6 | 999999 | |
| 0 | 4 | 0 | 3 | -20.69 | 310.49 | -42.50 | 122.87 | 0.7548 | -252.0 | -397.2 | |
| 20 | 93 | 16 | 75 | -23.56 | 308.28 | -44.71 | 125.00 | 0.7896 | -909.2 | -239.0 | |
| 0 | 5 | 0 | 4 | -20.28 | 309.51 | -43.48 | 121.85 | 0.7623 | 537.0 | 385.0 | |
| 18 | 154 | 14 | 122 | -21.95 | 308.59 | -44.40 | 123.33 | 0.7789 | -1338.3 | -468.3 | |
| 0 | 3 | 0 | 2 | -20.35 | 308.97 | -44.02 | 121.66 | 0.7678 | 659.0 | 455.8 | |
| 10 | -6 | 8 | -6 | -22.07 | 308.02 | -44.97 | 123.17 | 0.7848 | -766.6 | 999999 | |
| 0 | 10 | 0 | 8 | -20.46 | 307.88 | -45.11 | 121.23 | 0.7785 | 68.0 | 178.0 | |
| 0 | 6 | 0 | 5 | -21.09 | 307.35 | -45.64 | 121.69 | 0.7863 | 176.0 | 126.5 | |
| 0 | 5 | 0 | 4 | -22.29 | 306.55 | -46.44 | 122.68 | 0.7989 | -709.0 | -521.9 | |
| 0 | 3 | 0 | 3 | -22.88 | 306.10 | -46.89 | 123.13 | 0.8054 | -531.0 | -360.4 | |
| 8 | 106 | 7 | 91 | -24.02 | 305.12 | -47.87 | 123.93 | 0.8187 | -773.6 | -181.2 | |
| 0 | 9 | 0 | 7 | -20.03 | 306.69 | -46.30 | 120.14 | 0.7877 | 654.0 | 489.3 | |
| 15 | -13 | 13 | -13 | -23.63 | 305.13 | -47.86 | 123.50 | 0.8170 | -621.1 | 999999 | |
| 11 | 70 | 9 | 58 | -20.99 | 306.19 | -46.80 | 121.02 | 0.7965 | 849.6 | 712.6 | |
| -15 | -13 | -15 | -13 | -23.70 | 304.65 | -48.34 | 123.36 | 0.8213 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -23.26 | 304.16 | -48.83 | 122.64 | 0.8235 | -359.0 | -346.4 | |
| 3 | -16 | 2 | -16 | -21.18 | 305.12 | -47.87 | 120.74 | 0.8068 | 338.5 | 999999 | |
| 0 | 3 | 0 | 3 | -20.30 | 305.00 | -47.99 | 119.68 | 0.8043 | 615.0 | 470.8 | |
| 0 | 25 | 0 | 22 | -21.75 | 303.54 | -49.45 | 120.68 | 0.8228 | -568.0 | -487.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
