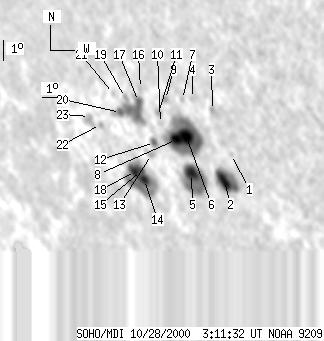

SOHO MDI 2000-10-28 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84 | 562 | 67 | 449 | -22.60 | 307.21 | -44.90 | 123.83 | 0.7864 | -778.6 | -231.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 2 | -22.58 | 310.89 | -41.22 | 125.84 | 0.7528 | -487.0 | -559.7 | |
| 17 | 61 | 13 | 47 | -23.76 | 310.05 | -42.06 | 126.69 | 0.7670 | -799.6 | -507.5 | |
| 0 | 5 | 0 | 4 | -20.72 | 310.49 | -41.62 | 123.41 | 0.7465 | -607.0 | -359.7 | |
| 0 | 2 | 0 | 1 | -20.27 | 309.53 | -42.58 | 122.33 | 0.7535 | 462.0 | 387.2 | |
| 14 | 91 | 11 | 72 | -23.56 | 308.22 | -43.89 | 125.44 | 0.7823 | -937.3 | -316.2 | |
| 16 | 160 | 12 | 125 | -21.94 | 308.59 | -43.53 | 123.78 | 0.7709 | -1337.7 | -500.5 | |
| 0 | 3 | 0 | 2 | -20.35 | 308.94 | -43.17 | 122.10 | 0.7595 | 562.0 | 444.9 | |
| 10 | -6 | 8 | -6 | -22.11 | 307.94 | -44.17 | 123.63 | 0.7776 | -781.6 | 999999 | |
| 0 | 6 | 0 | 5 | -20.41 | 307.95 | -44.16 | 121.64 | 0.7693 | 75.0 | 59.4 | |
| 0 | 4 | 0 | 3 | -21.47 | 307.26 | -44.85 | 122.53 | 0.7808 | -313.0 | -201.7 | |
| 0 | 6 | 0 | 4 | -21.00 | 307.33 | -44.78 | 122.01 | 0.7779 | 196.0 | 152.5 | |
| 2 | 9 | 2 | 7 | -22.32 | 306.56 | -45.55 | 123.15 | 0.7911 | -572.7 | -485.6 | |
| 0 | 9 | 0 | 8 | -22.86 | 306.14 | -45.97 | 123.56 | 0.7973 | -397.0 | -381.5 | |
| 9 | 110 | 8 | 92 | -24.01 | 305.19 | -46.92 | 124.37 | 0.8106 | -730.7 | -234.5 | |
| 3 | -14 | 3 | -14 | -23.62 | 305.19 | -46.92 | 123.94 | 0.8089 | -1095.2 | 999999 | |
| 0 | 4 | 0 | 3 | -20.02 | 306.64 | -45.47 | 120.53 | 0.7799 | 702.0 | 579.4 | |
| 3 | 63 | 2 | 51 | -20.59 | 306.31 | -45.81 | 121.03 | 0.7856 | 681.7 | 741.5 | |
| 7 | -14 | 6 | -14 | -23.68 | 304.78 | -47.33 | 123.82 | 0.8126 | -529.0 | 999999 | |
| 0 | 5 | 0 | 4 | -20.47 | 305.58 | -46.53 | 120.54 | 0.7917 | 603.0 | 602.7 | |
| 3 | -17 | 2 | -17 | -21.14 | 305.00 | -47.11 | 121.04 | 0.7998 | 441.3 | 999999 | |
| 0 | 2 | 0 | 2 | -20.34 | 304.90 | -47.21 | 120.07 | 0.7974 | 454.0 | 434.5 | |
| 0 | 4 | 0 | 4 | -21.75 | 303.50 | -48.62 | 121.04 | 0.8156 | -560.0 | -415.3 | |
| 0 | 16 | 0 | 13 | -21.44 | 302.94 | -49.17 | 120.44 | 0.8192 | -572.0 | -517.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
