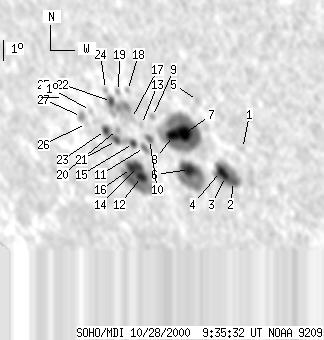

SOHO MDI 2000-10-28 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111 | 605 | 84 | 454 | -22.64 | 307.07 | -41.52 | 125.74 | 0.7558 | -663.1 | -252.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -22.47 | 311.45 | -37.15 | 128.30 | 0.7134 | -177.0 | -206.9 | |
| 6 | 68 | 5 | 49 | -23.95 | 310.48 | -38.12 | 129.37 | 0.7321 | -496.6 | -582.8 | |
| 11 | -2 | 8 | -2 | -23.75 | 310.12 | -38.48 | 128.90 | 0.7342 | -883.2 | 999999 | |
| -3 | -2 | -3 | -2 | -23.54 | 309.92 | -38.68 | 128.53 | 0.7347 | 999999 | 999999 | |
| 0 | 7 | 0 | 5 | -20.51 | 309.68 | -38.91 | 124.76 | 0.7185 | 315.0 | 192.6 | |
| 19 | 89 | 14 | 66 | -23.55 | 308.22 | -40.37 | 127.45 | 0.7504 | -911.4 | -294.8 | |
| 17 | 180 | 12 | 132 | -21.98 | 308.51 | -40.09 | 125.80 | 0.7386 | -1371.8 | -507.1 | |
| 14 | -7 | 10 | -7 | -22.10 | 307.86 | -40.73 | 125.55 | 0.7454 | -833.0 | 999999 | |
| 0 | 5 | 0 | 4 | -21.34 | 306.97 | -41.63 | 124.12 | 0.7497 | -277.0 | -413.1 | |
| 3 | 9 | 2 | 7 | -22.35 | 306.43 | -42.16 | 125.00 | 0.7602 | -735.4 | -587.5 | |
| 1 | 10 | 1 | 7 | -22.72 | 306.01 | -42.59 | 125.19 | 0.7661 | -604.4 | -525.7 | |
| 7 | 107 | 6 | 84 | -24.02 | 305.31 | -43.29 | 126.28 | 0.7792 | -772.6 | -190.5 | |
| 0 | 3 | 0 | 2 | -21.72 | 306.22 | -42.38 | 124.14 | 0.7589 | -513.0 | -389.2 | |
| 6 | -12 | 5 | -12 | -23.59 | 305.32 | -43.28 | 125.79 | 0.7768 | -1075.9 | 999999 | |
| 4 | 17 | 3 | 13 | -22.58 | 305.44 | -43.16 | 124.70 | 0.7706 | -395.1 | -284.3 | |
| 8 | -12 | 6 | -12 | -23.70 | 304.86 | -43.73 | 125.67 | 0.7815 | -546.7 | 999999 | |
| 0 | 4 | 0 | 3 | -21.50 | 305.73 | -42.86 | 123.60 | 0.7623 | 412.0 | 309.0 | |
| 0 | 4 | 0 | 3 | -20.30 | 305.94 | -42.66 | 122.29 | 0.7542 | 650.0 | 628.8 | |
| 0 | 5 | 0 | 4 | -20.37 | 305.40 | -43.19 | 122.09 | 0.7597 | 641.0 | 568.6 | |
| 0 | 5 | 0 | 4 | -22.03 | 304.73 | -43.87 | 123.67 | 0.7742 | -148.0 | -1.7 | |
| 5 | 23 | 4 | 18 | -22.51 | 304.48 | -44.12 | 124.10 | 0.7790 | -33.9 | 335.2 | |
| 5 | 45 | 4 | 35 | -20.83 | 304.84 | -43.76 | 122.33 | 0.7673 | 968.0 | 698.5 | |
| 5 | -21 | 4 | -21 | -22.11 | 304.00 | -44.60 | 123.38 | 0.7814 | 685.6 | 999999 | |
| 0 | 4 | 0 | 3 | -20.33 | 304.68 | -43.92 | 121.66 | 0.7665 | 407.0 | 324.2 | |
| 0 | 4 | 0 | 3 | -21.29 | 303.44 | -45.16 | 122.15 | 0.7826 | -596.0 | -487.3 | |
| 0 | 2 | 0 | 2 | -21.87 | 302.97 | -45.63 | 122.59 | 0.7896 | -555.0 | -483.1 | |
| 0 | 9 | 0 | 7 | -21.59 | 302.79 | -45.81 | 122.16 | 0.7899 | -728.0 | -616.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
