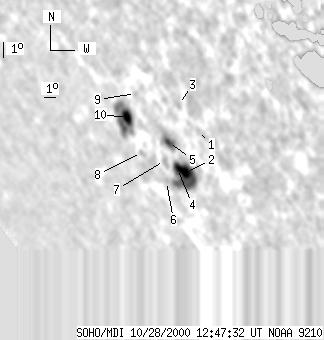

SOHO MDI 2000-10-28 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 214 | 29 | 223 | -28.09 | 292.89 | -53.95 | 125.64 | 0.8796 | 548.5 | 164.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 10 | 0 | 10 | -27.27 | 296.27 | -50.57 | 126.19 | 0.8528 | 609.0 | 347.9 | |
| 7 | 78 | 7 | 80 | -29.33 | 293.93 | -52.91 | 127.35 | 0.8769 | 791.1 | 261.5 | |
| 0 | 6 | 0 | 6 | -26.16 | 295.59 | -51.25 | 124.70 | 0.8537 | 253.0 | 250.0 | |
| 6 | -2 | 7 | -2 | -29.18 | 293.45 | -53.39 | 127.00 | 0.8795 | 561.1 | 999999 | |
| 3 | 29 | 3 | 29 | -27.99 | 293.66 | -53.18 | 125.84 | 0.8740 | 673.7 | 431.6 | |
| 0 | 4 | 0 | 5 | -29.87 | 292.06 | -54.78 | 127.16 | 0.8908 | -197.0 | -192.1 | |
| 0 | 8 | 0 | 9 | -28.87 | 292.71 | -54.13 | 126.37 | 0.8834 | 197.0 | 147.7 | |
| 0 | 3 | 0 | 4 | -28.61 | 291.14 | -55.70 | 125.50 | 0.8928 | -37.0 | 1.6 | |
| 0 | 3 | 0 | 3 | -25.87 | 292.71 | -54.13 | 123.22 | 0.8736 | 175.0 | 130.6 | |
| 12 | 73 | 12 | 77 | -27.03 | 291.28 | -55.56 | 123.90 | 0.8871 | 406.4 | -31.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
