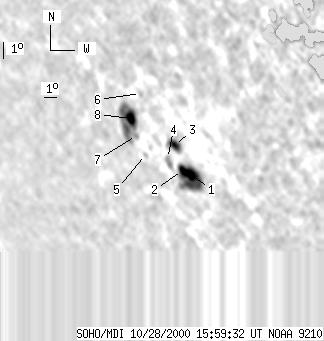

SOHO MDI 2000-10-28 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 176 | 28 | 176 | -28.10 | 292.53 | -52.55 | 126.22 | 0.8702 | 579.5 | 182.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 70 | 7 | 69 | -29.36 | 293.88 | -51.20 | 128.10 | 0.8653 | 741.3 | 324.7 | |
| 7 | -1 | 7 | -1 | -29.16 | 293.38 | -51.71 | 127.68 | 0.8680 | 400.8 | 999999 | |
| 6 | 20 | 5 | 20 | -28.01 | 293.60 | -51.48 | 126.57 | 0.8622 | 651.0 | 478.1 | |
| 0 | 10 | 0 | 10 | -28.66 | 292.65 | -52.43 | 126.85 | 0.8712 | 225.0 | 115.3 | |
| 0 | 3 | 0 | 3 | -28.59 | 291.08 | -54.00 | 126.13 | 0.8815 | -125.0 | -3.6 | |
| 0 | 2 | 0 | 2 | -25.75 | 292.68 | -52.41 | 123.78 | 0.8607 | 203.0 | 192.2 | |
| 0 | 3 | 0 | 3 | -27.73 | 291.04 | -54.04 | 125.22 | 0.8790 | 317.0 | 194.8 | |
| 9 | 68 | 9 | 69 | -26.96 | 291.22 | -53.86 | 124.48 | 0.8752 | 590.5 | -29.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
