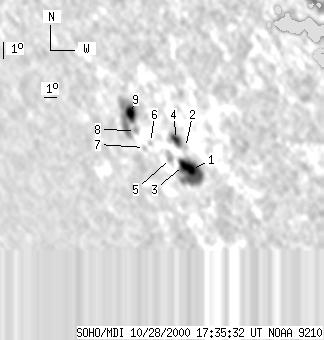

SOHO MDI 2000-10-28 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25 | 181 | 24 | 178 | -28.25 | 292.53 | -51.67 | 126.75 | 0.8645 | 540.3 | 210.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 77 | 6 | 75 | -29.35 | 293.84 | -50.37 | 128.47 | 0.8595 | 748.3 | 332.6 | |
| 0 | 3 | 0 | 2 | -28.33 | 294.10 | -50.11 | 127.52 | 0.8535 | 473.0 | 528.2 | |
| 7 | -1 | 6 | -1 | -29.20 | 293.38 | -50.82 | 128.10 | 0.8620 | 426.6 | 999999 | |
| 4 | 18 | 4 | 17 | -27.99 | 293.70 | -50.51 | 126.98 | 0.8551 | 716.9 | 602.2 | |
| 0 | 11 | 0 | 11 | -28.93 | 292.65 | -51.56 | 127.50 | 0.8661 | 304.0 | 121.5 | |
| 0 | 1 | 0 | 1 | -28.27 | 291.68 | -52.53 | 126.39 | 0.8704 | 319.0 | 277.0 | |
| 0 | 2 | 0 | 3 | -28.54 | 291.05 | -53.16 | 126.41 | 0.8757 | -52.0 | -31.4 | |
| 0 | 7 | 0 | 7 | -27.78 | 290.93 | -53.27 | 125.57 | 0.8738 | 160.0 | 75.3 | |
| 8 | 62 | 8 | 62 | -27.00 | 291.11 | -53.10 | 124.82 | 0.8700 | 418.6 | -14.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
