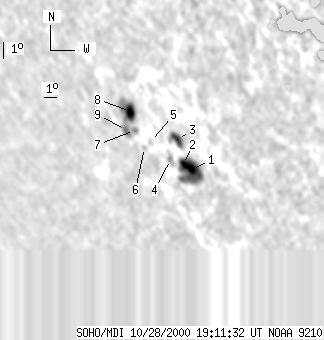

SOHO MDI 2000-10-28 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31 | 172 | 29 | 164 | -28.35 | 292.49 | -50.84 | 127.22 | 0.8589 | 658.8 | 207.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 78 | 7 | 74 | -29.39 | 293.76 | -49.57 | 128.88 | 0.8540 | 818.7 | 309.6 | |
| 7 | -1 | 6 | -1 | -29.19 | 293.34 | -49.98 | 128.47 | 0.8561 | 661.4 | 999999 | |
| 6 | 20 | 6 | 18 | -28.03 | 293.69 | -49.64 | 127.41 | 0.8489 | 745.1 | 525.2 | |
| 0 | 7 | 0 | 7 | -29.01 | 292.56 | -50.77 | 127.93 | 0.8609 | 143.0 | 78.9 | |
| 0 | 2 | 0 | 2 | -28.26 | 291.67 | -51.66 | 126.75 | 0.8643 | 290.0 | 211.7 | |
| 0 | 2 | 0 | 2 | -28.57 | 291.02 | -52.31 | 126.80 | 0.8699 | 84.0 | 40.9 | |
| 0 | 5 | 0 | 4 | -27.82 | 290.83 | -52.50 | 125.93 | 0.8686 | 109.0 | 207.6 | |
| 11 | 44 | 10 | 43 | -26.94 | 291.13 | -52.20 | 125.13 | 0.8633 | 554.1 | 99.6 | |
| 0 | 14 | 0 | 14 | -27.86 | 290.22 | -53.11 | 125.72 | 0.8730 | -356.0 | -318.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
