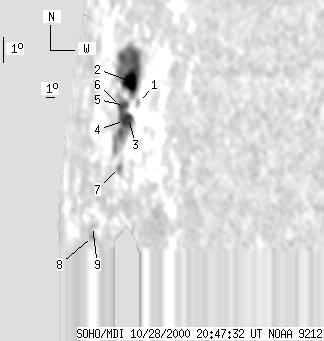

SOHO MDI 2000-10-28 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43 | 276 | 75 | 490 | 8.73 | 268.11 | -74.34 | 82.23 | 0.9617 | 30.3 | -103.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 8 | 9.02 | 269.83 | -72.62 | 81.99 | 0.9532 | 193.0 | 214.5 | |
| 21 | 145 | 37 | 254 | 9.73 | 268.32 | -74.13 | 81.20 | 0.9606 | 474.6 | 123.8 | |
| 4 | 102 | 7 | 181 | 8.35 | 268.80 | -73.65 | 82.65 | 0.9585 | -181.9 | -390.8 | |
| 12 | -3 | 20 | -3 | 8.20 | 268.31 | -74.14 | 82.79 | 0.9610 | -528.1 | 999999 | |
| 3 | -3 | 5 | -3 | 8.76 | 268.00 | -74.45 | 82.19 | 0.9623 | -74.8 | 999999 | |
| 3 | -3 | 6 | -3 | 8.68 | 267.45 | -75.00 | 82.25 | 0.9649 | -475.6 | 999999 | |
| 0 | 10 | 0 | 17 | 6.38 | 268.41 | -74.03 | 84.69 | 0.9609 | -483.0 | -303.1 | |
| 0 | 8 | 0 | 18 | 3.44 | 265.10 | -77.35 | 87.52 | 0.9759 | -409.0 | -299.6 | |
| 0 | 6 | 0 | 12 | 3.82 | 264.99 | -77.46 | 87.12 | 0.9762 | -304.0 | -208.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
