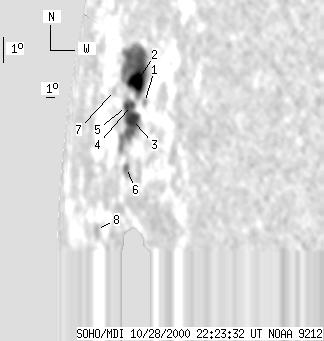

SOHO MDI 2000-10-28 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 280 | 86 | 472 | 8.77 | 268.14 | -73.43 | 82.21 | 0.9573 | 28.3 | -77.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-28 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 8 | 9.00 | 269.74 | -71.83 | 82.04 | 0.9490 | 159.0 | 227.0 | |
| 25 | 154 | 41 | 256 | 9.68 | 268.32 | -73.25 | 81.28 | 0.9563 | 483.3 | 131.6 | |
| 21 | 94 | 35 | 156 | 8.24 | 268.53 | -73.04 | 82.79 | 0.9555 | -426.2 | -373.4 | |
| 3 | -3 | 5 | -3 | 8.76 | 268.13 | -73.44 | 82.23 | 0.9574 | 18.2 | 999999 | |
| 3 | -3 | 5 | -3 | 8.67 | 267.47 | -74.10 | 82.30 | 0.9607 | -467.2 | 999999 | |
| 0 | 12 | 0 | 20 | 6.37 | 268.52 | -73.05 | 84.75 | 0.9560 | -502.0 | -224.4 | |
| 0 | 4 | 0 | 8 | 9.13 | 265.33 | -76.24 | 81.73 | 0.9702 | -227.0 | -199.2 | |
| 0 | 11 | 0 | 24 | 3.68 | 264.86 | -76.71 | 87.31 | 0.9733 | -433.0 | -330.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
