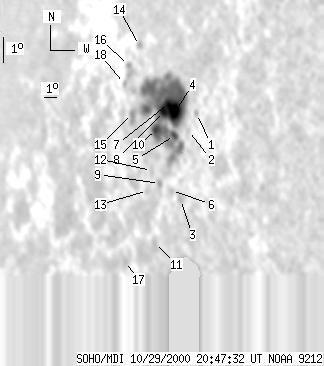

SOHO MDI 2000-10-29 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51 | 480 | 51 | 491 | 9.30 | 267.85 | -61.42 | 81.86 | 0.8773 | 755.2 | 65.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-29 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | 9.76 | 270.25 | -59.02 | 81.32 | 0.8569 | 323.0 | 431.0 | |
| 0 | 3 | 0 | 3 | 9.06 | 269.82 | -59.45 | 82.13 | 0.8606 | 289.0 | 318.4 | |
| 0 | 9 | 0 | 9 | 6.38 | 269.83 | -59.44 | 85.25 | 0.8608 | 139.0 | 110.5 | |
| 25 | 382 | 25 | 387 | 9.76 | 268.59 | -60.68 | 81.33 | 0.8712 | 1180.9 | 129.4 | |
| 5 | -4 | 5 | -4 | 8.80 | 268.80 | -60.47 | 82.43 | 0.8695 | 512.3 | 999999 | |
| 0 | 4 | 0 | 4 | 6.68 | 269.07 | -60.20 | 84.88 | 0.8674 | -327.0 | -287.2 | |
| 7 | -4 | 7 | -4 | 9.99 | 267.95 | -61.32 | 81.07 | 0.8766 | 919.6 | 999999 | |
| 9 | -4 | 9 | -4 | 9.66 | 267.65 | -61.62 | 81.45 | 0.8791 | 552.3 | 999999 | |
| 0 | 6 | 0 | 6 | 6.88 | 268.06 | -61.21 | 84.62 | 0.8759 | -361.0 | -333.8 | |
| 5 | -4 | 5 | -4 | 8.93 | 267.29 | -61.98 | 82.28 | 0.8821 | -493.9 | 999999 | |
| 0 | 13 | 0 | 13 | 4.60 | 268.08 | -61.19 | 87.24 | 0.8764 | -52.0 | -56.4 | |
| 0 | 7 | 0 | 7 | 7.34 | 267.30 | -61.97 | 84.09 | 0.8821 | -465.0 | -364.8 | |
| 0 | 3 | 0 | 3 | 6.55 | 267.15 | -62.12 | 84.98 | 0.8835 | -416.0 | -455.6 | |
| 0 | 5 | 0 | 5 | 12.03 | 264.63 | -64.64 | 78.80 | 0.9027 | -389.0 | -465.1 | |
| 0 | 15 | 0 | 17 | 9.40 | 265.04 | -64.23 | 81.73 | 0.8996 | -235.0 | -88.4 | |
| 0 | 18 | 0 | 22 | 11.20 | 263.97 | -65.30 | 79.73 | 0.9075 | -566.0 | -297.9 | |
| 0 | 7 | 0 | 8 | 3.70 | 265.76 | -63.51 | 88.12 | 0.8955 | -274.0 | -223.6 | |
| 0 | 4 | 0 | 4 | 10.49 | 263.89 | -65.38 | 80.52 | 0.9081 | -379.0 | -304.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
