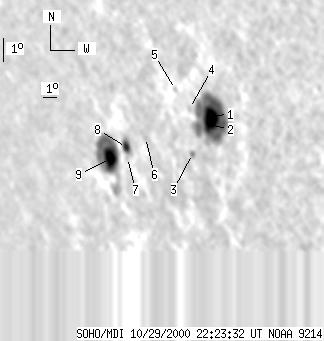

SOHO MDI 2000-10-29 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56 | 349 | 51 | 318 | -10.30 | 273.12 | -55.27 | 105.38 | 0.8389 | -52.5 | -110.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-29 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 190 | 11 | 158 | -9.17 | 276.76 | -51.63 | 104.97 | 0.8035 | -1112.8 | -414.4 | |
| 12 | -1 | 10 | -1 | -9.54 | 276.55 | -51.84 | 105.37 | 0.8064 | -850.4 | 999999 | |
| 0 | 4 | 0 | 4 | -10.78 | 275.16 | -53.23 | 106.47 | 0.8228 | -278.0 | -133.6 | |
| 0 | 3 | 0 | 2 | -8.98 | 275.38 | -53.01 | 104.38 | 0.8167 | -154.0 | -143.6 | |
| 0 | 2 | 0 | 2 | -8.28 | 274.61 | -53.79 | 103.36 | 0.8228 | -286.0 | -315.5 | |
| 0 | 2 | 0 | 2 | -10.35 | 272.06 | -56.34 | 105.17 | 0.8504 | 262.0 | 219.3 | |
| 0 | 2 | 0 | 2 | -11.25 | 270.48 | -57.92 | 105.82 | 0.8657 | 537.0 | 440.4 | |
| 7 | 16 | 7 | 15 | -10.85 | 270.53 | -57.86 | 105.37 | 0.8646 | 631.5 | 498.4 | |
| 23 | 130 | 23 | 133 | -11.38 | 269.14 | -59.25 | 105.66 | 0.8770 | 590.3 | 171.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
