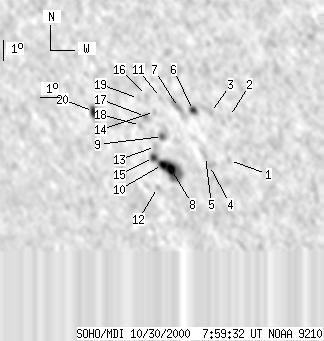

SOHO MDI 2000-10-30 07:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 163 | 20 | 111 | -28.24 | 293.13 | -29.99 | 140.35 | 0.6924 | 768.8 | 535.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 07:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -28.96 | 296.04 | -27.08 | 143.76 | 0.6760 | 654.0 | 536.5 | |
| 0 | 4 | 0 | 3 | -26.93 | 296.59 | -26.53 | 142.21 | 0.6523 | 554.0 | 364.4 | |
| 0 | 2 | 0 | 2 | -26.79 | 295.71 | -27.41 | 141.19 | 0.6581 | 755.0 | 708.8 | |
| 0 | 9 | 0 | 6 | -29.23 | 294.97 | -28.15 | 143.01 | 0.6868 | 471.0 | 535.5 | |
| 0 | 7 | 0 | 5 | -28.82 | 294.89 | -28.23 | 142.53 | 0.6836 | 698.0 | 563.9 | |
| 3 | 7 | 2 | 4 | -26.73 | 294.89 | -28.23 | 140.34 | 0.6643 | 775.2 | 732.2 | |
| 0 | 13 | 0 | 8 | -26.62 | 294.18 | -28.94 | 139.56 | 0.6693 | 798.0 | 701.0 | |
| 17 | 62 | 12 | 43 | -29.49 | 292.96 | -30.16 | 141.48 | 0.7046 | 864.6 | 506.0 | |
| 0 | 14 | 0 | 9 | -27.98 | 292.98 | -30.14 | 139.93 | 0.6912 | 852.0 | 603.8 | |
| -8 | -8 | -8 | -8 | -29.28 | 292.57 | -30.55 | 140.92 | 0.7058 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -26.20 | 293.41 | -29.71 | 138.40 | 0.6722 | 602.0 | 473.7 | |
| 0 | 2 | 0 | 2 | -30.38 | 291.93 | -31.19 | 141.49 | 0.7200 | -136.0 | -91.3 | |
| 0 | 3 | 0 | 2 | -28.46 | 292.48 | -30.64 | 139.99 | 0.6994 | 713.0 | 635.8 | |
| 0 | 3 | 0 | 2 | -26.85 | 292.92 | -30.20 | 138.67 | 0.6819 | 663.0 | 566.3 | |
| 3 | -8 | 2 | -8 | -28.97 | 292.21 | -30.92 | 140.30 | 0.7060 | 608.7 | 999999 | |
| 0 | 4 | 0 | 3 | -26.14 | 292.73 | -30.39 | 137.73 | 0.6775 | 472.0 | 351.1 | |
| 0 | 8 | 0 | 5 | -27.10 | 292.40 | -30.72 | 138.48 | 0.6885 | 635.0 | 635.8 | |
| 0 | 4 | 0 | 2 | -27.52 | 292.01 | -31.11 | 138.60 | 0.6953 | 612.0 | 501.6 | |
| 0 | 3 | 0 | 2 | -26.30 | 292.29 | -30.83 | 137.51 | 0.6826 | 463.0 | 417.9 | |
| 5 | 11 | 4 | 8 | -26.99 | 289.77 | -33.35 | 136.18 | 0.7098 | 694.6 | 538.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
