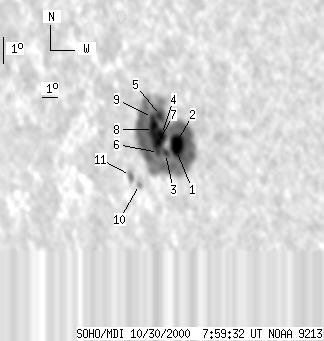

SOHO MDI 2000-10-30 07:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81 | 516 | 65 | 413 | 2.45 | 271.37 | -51.75 | 90.41 | 0.7869 | 1066.8 | 328.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 07:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28 | 501 | 22 | 400 | 2.07 | 272.23 | -50.89 | 90.96 | 0.7779 | 1394.1 | 350.3 | |
| -1 | -1 | -1 | -1 | 2.38 | 272.21 | -50.91 | 90.57 | 0.7778 | 999999 | 999999 | |
| 3 | -1 | 3 | -1 | 1.91 | 271.55 | -51.57 | 91.10 | 0.7854 | 854.6 | 999999 | |
| 9 | -1 | 7 | -1 | 2.63 | 271.26 | -51.86 | 90.17 | 0.7879 | 1229.6 | 999999 | |
| 8 | -1 | 6 | -1 | 3.36 | 271.15 | -51.97 | 89.23 | 0.7887 | 989.3 | 999999 | |
| 4 | -1 | 3 | -1 | 1.92 | 271.11 | -52.01 | 91.05 | 0.7901 | 628.0 | 999999 | |
| 11 | -1 | 9 | -1 | 2.27 | 271.03 | -52.09 | 90.61 | 0.7907 | 863.4 | 999999 | |
| 15 | -1 | 12 | -1 | 2.79 | 270.75 | -52.37 | 89.92 | 0.7933 | 885.2 | 999999 | |
| 3 | -1 | 3 | -1 | 3.25 | 270.65 | -52.47 | 89.34 | 0.7941 | 633.8 | 999999 | |
| 0 | 6 | 0 | 5 | 0.61 | 269.94 | -53.18 | 92.57 | 0.8036 | -369.0 | -283.7 | |
| 0 | 9 | 0 | 8 | 0.92 | 269.34 | -53.78 | 92.12 | 0.8094 | -554.0 | -395.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
