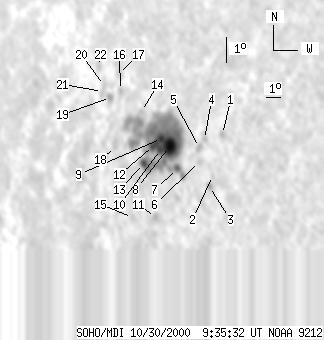

SOHO MDI 2000-10-30 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45 | 496 | 37 | 420 | 9.71 | 267.83 | -54.41 | 81.25 | 0.8130 | 790.2 | 251.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 5 | 10.38 | 271.78 | -50.46 | 80.20 | 0.7722 | 421.0 | 553.2 | |
| 0 | 2 | 0 | 2 | 8.77 | 271.49 | -50.75 | 82.30 | 0.7746 | 513.0 | 537.6 | |
| 0 | 5 | 0 | 4 | 8.34 | 271.39 | -50.86 | 82.87 | 0.7757 | 574.0 | 640.4 | |
| 0 | 8 | 0 | 7 | 10.12 | 270.71 | -51.53 | 80.59 | 0.7836 | 564.0 | 582.2 | |
| 0 | 8 | 0 | 6 | 9.80 | 270.47 | -51.78 | 81.02 | 0.7860 | 695.0 | 604.7 | |
| 0 | 6 | 0 | 5 | 9.26 | 270.58 | -51.66 | 81.71 | 0.7846 | 459.0 | 409.8 | |
| 4 | 397 | 3 | 334 | 8.91 | 269.24 | -53.00 | 82.19 | 0.7987 | 596.2 | 311.6 | |
| 17 | -7 | 14 | -7 | 9.72 | 268.53 | -53.71 | 81.20 | 0.8062 | 1412.2 | 999999 | |
| 6 | -7 | 5 | -7 | 9.99 | 267.93 | -54.31 | 80.88 | 0.8123 | 1018.5 | 999999 | |
| 6 | -7 | 5 | -7 | 9.57 | 267.97 | -54.27 | 81.41 | 0.8119 | 740.9 | 999999 | |
| 0 | 8 | 0 | 6 | 6.94 | 268.16 | -54.08 | 84.66 | 0.8096 | -512.0 | -336.9 | |
| 7 | -7 | 6 | -7 | 9.69 | 267.46 | -54.78 | 81.27 | 0.8169 | 583.5 | 999999 | |
| 5 | -7 | 4 | -7 | 8.96 | 266.95 | -55.29 | 82.18 | 0.8219 | -523.7 | 999999 | |
| 0 | 3 | 0 | 3 | 10.94 | 266.30 | -55.94 | 79.79 | 0.8287 | -189.0 | -142.1 | |
| 0 | 6 | 0 | 5 | 6.84 | 266.62 | -55.62 | 84.76 | 0.8251 | -186.0 | -300.0 | |
| 0 | 6 | 0 | 5 | 11.66 | 264.56 | -57.68 | 79.01 | 0.8453 | 3.0 | -8.4 | |
| 0 | 8 | 0 | 7 | 12.30 | 264.19 | -58.05 | 78.27 | 0.8488 | -569.0 | -355.1 | |
| 0 | 11 | 0 | 10 | 9.48 | 264.83 | -57.41 | 81.58 | 0.8422 | -145.0 | -120.3 | |
| 0 | 7 | 0 | 6 | 11.34 | 263.92 | -58.32 | 79.41 | 0.8510 | -606.0 | -408.1 | |
| 0 | 5 | 0 | 5 | 11.77 | 263.31 | -58.93 | 78.93 | 0.8565 | -419.0 | -363.1 | |
| 0 | 3 | 0 | 3 | 11.53 | 263.24 | -59.00 | 79.21 | 0.8571 | -474.0 | -438.8 | |
| 0 | 7 | 0 | 7 | 12.47 | 262.67 | -59.57 | 78.13 | 0.8624 | -109.0 | -217.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
