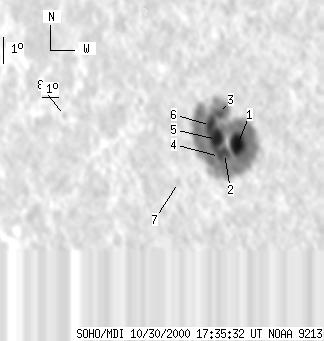

SOHO MDI 2000-10-30 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92 | 563 | 65 | 404 | 2.42 | 271.47 | -46.38 | 90.88 | 0.7256 | 1142.9 | 402.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 555 | 20 | 397 | 2.28 | 272.39 | -45.46 | 91.16 | 0.7147 | 1473.1 | 415.5 | |
| 12 | -1 | 9 | -1 | 1.89 | 271.68 | -46.17 | 91.63 | 0.7236 | 989.6 | 999999 | |
| 6 | -1 | 4 | -1 | 3.42 | 271.33 | -46.52 | 89.49 | 0.7268 | 1095.0 | 999999 | |
| -2 | -1 | -2 | -1 | 1.76 | 271.41 | -46.44 | 91.78 | 0.7271 | 999999 | 999999 | |
| 29 | -1 | 21 | -1 | 2.41 | 271.21 | -46.64 | 90.87 | 0.7288 | 1091.2 | 999999 | |
| 16 | -1 | 11 | -1 | 2.93 | 270.85 | -47.00 | 90.13 | 0.7328 | 838.5 | 999999 | |
| 0 | 5 | 0 | 4 | 0.62 | 269.08 | -48.77 | 93.04 | 0.7555 | -488.0 | -348.2 | |
| 0 | 3 | 0 | 3 | 2.76 | 261.74 | -56.11 | 89.65 | 0.8314 | -211.0 | -274.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
