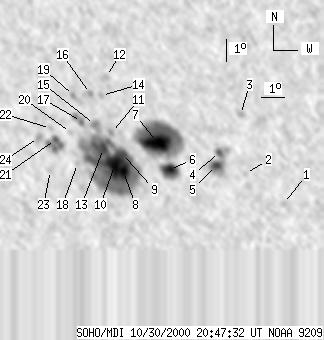

SOHO MDI 2000-10-30 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112 | 762 | 65 | 434 | -22.73 | 306.25 | -9.84 | 160.92 | 0.4844 | -1338.7 | -553.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -24.93 | 312.60 | -3.49 | 173.57 | 0.4950 | -872.0 | -724.2 | |
| 0 | 4 | 0 | 2 | -23.62 | 311.04 | -5.06 | 170.24 | 0.4785 | -426.0 | -394.3 | |
| 0 | 6 | 0 | 3 | -21.07 | 310.92 | -5.17 | 168.93 | 0.4400 | -942.0 | -742.1 | |
| 3 | 46 | 2 | 26 | -22.71 | 309.98 | -6.11 | 167.83 | 0.4679 | -1105.1 | -666.4 | |
| 7 | -4 | 4 | -4 | -23.28 | 309.83 | -6.27 | 167.81 | 0.4769 | -1055.0 | 999999 | |
| 10 | 39 | 6 | 22 | -23.47 | 307.83 | -8.27 | 164.23 | 0.4872 | -1123.5 | -513.8 | |
| 35 | 197 | 20 | 111 | -22.31 | 307.39 | -8.70 | 162.68 | 0.4721 | -1638.1 | -852.0 | |
| 9 | 350 | 5 | 199 | -23.59 | 305.86 | -10.23 | 160.83 | 0.4978 | -1396.2 | -550.9 | |
| 7 | -8 | 4 | -8 | -22.80 | 305.88 | -10.21 | 160.29 | 0.4866 | -1583.9 | 999999 | |
| 31 | -8 | 18 | -8 | -23.33 | 305.50 | -10.60 | 160.02 | 0.4961 | -1535.6 | 999999 | |
| 0 | 5 | 0 | 3 | -21.90 | 305.48 | -10.61 | 158.87 | 0.4759 | -549.0 | -611.7 | |
| 0 | 8 | 0 | 5 | -19.52 | 305.44 | -10.65 | 156.70 | 0.4422 | 760.0 | 597.9 | |
| 7 | -8 | 4 | -8 | -22.60 | 305.09 | -11.00 | 158.74 | 0.4879 | -1339.6 | 999999 | |
| 0 | 4 | 0 | 2 | -20.33 | 305.18 | -10.92 | 156.94 | 0.4553 | 626.0 | 614.2 | |
| 0 | 17 | 0 | 9 | -21.57 | 304.79 | -11.30 | 157.34 | 0.4752 | -1179.0 | -926.6 | |
| 0 | 4 | 0 | 2 | -20.25 | 304.72 | -11.37 | 156.02 | 0.4570 | 873.0 | 679.5 | |
| 0 | 14 | 0 | 8 | -21.45 | 304.25 | -11.84 | 156.28 | 0.4768 | -1023.0 | -747.1 | |
| 0 | 3 | 0 | 2 | -23.27 | 303.92 | -12.17 | 157.29 | 0.5039 | -279.0 | -294.4 | |
| 0 | 10 | 0 | 6 | -20.35 | 304.00 | -12.09 | 154.79 | 0.4630 | 753.0 | 579.5 | |
| 0 | 4 | 0 | 3 | -21.93 | 303.74 | -12.35 | 155.83 | 0.4866 | 300.0 | 324.6 | |
| 3 | 31 | 2 | 18 | -22.25 | 303.07 | -13.02 | 154.98 | 0.4951 | 984.2 | 548.9 | |
| 0 | 4 | 0 | 3 | -21.78 | 302.90 | -13.19 | 154.26 | 0.4898 | -416.0 | -320.0 | |
| 0 | 4 | 0 | 2 | -23.60 | 302.72 | -13.37 | 155.63 | 0.5155 | -469.0 | -541.6 | |
| 0 | 8 | 0 | 5 | -22.17 | 302.35 | -13.74 | 153.72 | 0.4988 | -920.0 | -638.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
