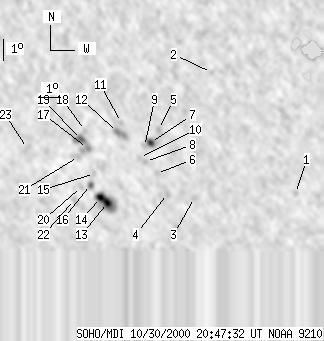

SOHO MDI 2000-10-30 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 167 | 9 | 109 | -27.90 | 293.30 | -22.79 | 147.15 | 0.6328 | 806.4 | 602.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -28.86 | 301.54 | -14.55 | 158.07 | 0.5914 | -631.0 | -477.3 | |
| 0 | 3 | 0 | 2 | -23.51 | 298.55 | -17.55 | 149.27 | 0.5431 | 673.0 | 507.3 | |
| 0 | 4 | 0 | 3 | -29.16 | 296.84 | -19.25 | 152.33 | 0.6224 | 424.0 | 531.2 | |
| 0 | 6 | 0 | 4 | -29.01 | 295.60 | -20.49 | 150.75 | 0.6288 | 840.0 | 696.1 | |
| 0 | 3 | 0 | 2 | -26.10 | 295.75 | -20.34 | 148.20 | 0.5946 | 656.0 | 614.0 | |
| 0 | 5 | 0 | 3 | -28.10 | 295.27 | -20.82 | 149.54 | 0.6207 | 586.0 | 524.4 | |
| 4 | 11 | 2 | 7 | -26.70 | 295.27 | -20.82 | 148.20 | 0.6049 | 1021.0 | 774.0 | |
| 0 | 4 | 0 | 3 | -27.57 | 294.87 | -21.22 | 148.56 | 0.6176 | 788.0 | 708.7 | |
| 0 | 2 | 0 | 2 | -26.89 | 294.96 | -21.13 | 148.01 | 0.6094 | 735.0 | 690.2 | |
| 0 | 3 | 0 | 2 | -27.40 | 294.62 | -21.47 | 148.11 | 0.6174 | 600.0 | 472.8 | |
| 0 | 3 | 0 | 2 | -25.84 | 294.10 | -21.99 | 145.95 | 0.6042 | 749.0 | 637.6 | |
| 0 | 15 | 0 | 9 | -26.30 | 293.82 | -22.27 | 146.09 | 0.6113 | 767.0 | 864.8 | |
| 5 | 43 | 3 | 28 | -29.52 | 292.62 | -23.47 | 147.91 | 0.6547 | 894.3 | 536.1 | |
| 6 | -13 | 4 | -13 | -29.30 | 292.34 | -23.75 | 147.40 | 0.6543 | 832.6 | 999999 | |
| 0 | 2 | 0 | 1 | -28.20 | 292.32 | -23.77 | 146.32 | 0.6430 | 736.0 | 641.5 | |
| 0 | 6 | 0 | 4 | -28.71 | 292.00 | -24.09 | 146.49 | 0.6507 | 664.0 | 669.3 | |
| 0 | 11 | 0 | 7 | -27.07 | 292.25 | -23.84 | 145.12 | 0.6317 | 1006.0 | 817.2 | |
| 0 | 3 | 0 | 2 | -26.25 | 292.34 | -23.76 | 144.37 | 0.6225 | 891.0 | 760.3 | |
| 0 | 12 | 0 | 8 | -26.67 | 292.06 | -24.04 | 144.50 | 0.6291 | 783.0 | 701.3 | |
| 0 | 6 | 0 | 4 | -28.82 | 291.54 | -24.55 | 146.11 | 0.6552 | 556.0 | 514.7 | |
| 0 | 9 | 0 | 6 | -27.44 | 291.73 | -24.36 | 144.95 | 0.6396 | 571.0 | 576.3 | |
| 0 | 7 | 0 | 5 | -29.44 | 291.04 | -25.05 | 146.19 | 0.6651 | 489.0 | 378.5 | |
| 0 | 5 | 0 | 3 | -27.17 | 289.35 | -26.74 | 142.21 | 0.6557 | 258.0 | 306.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
