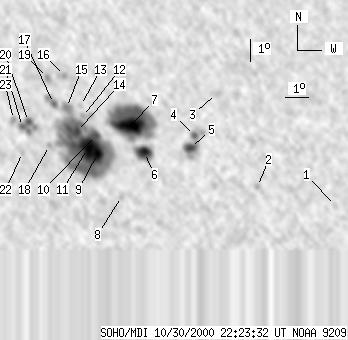

SOHO MDI 2000-10-30 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111 | 753 | 62 | 426 | -22.84 | 306.36 | -8.85 | 162.79 | 0.4812 | -1294.5 | -600.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -25.81 | 315.94 | 0.73 | 181.30 | 0.5054 | -817.0 | -701.6 | |
| 0 | 5 | 0 | 3 | -24.97 | 312.62 | -2.59 | 175.22 | 0.4941 | -886.0 | -701.9 | |
| 0 | 5 | 0 | 3 | -20.94 | 311.00 | -4.21 | 170.89 | 0.4351 | -740.0 | -695.8 | |
| 2 | 51 | 1 | 29 | -22.75 | 310.03 | -5.19 | 169.64 | 0.4656 | -1078.5 | -697.7 | |
| 7 | -4 | 4 | -4 | -23.27 | 309.84 | -5.38 | 169.49 | 0.4740 | -1027.1 | 999999 | |
| 13 | 36 | 7 | 20 | -23.51 | 307.88 | -7.33 | 165.95 | 0.4839 | -1072.4 | -532.8 | |
| 31 | 201 | 17 | 112 | -22.34 | 307.36 | -7.85 | 164.29 | 0.4687 | -1638.2 | -882.7 | |
| 0 | 5 | 0 | 3 | -25.46 | 306.78 | -8.44 | 165.08 | 0.5166 | -673.0 | -565.5 | |
| 8 | 344 | 4 | 195 | -23.57 | 305.88 | -9.33 | 162.39 | 0.4932 | -1460.5 | -575.4 | |
| 6 | -9 | 3 | -9 | -22.79 | 305.85 | -9.36 | 161.80 | 0.4821 | -1583.1 | 999999 | |
| 31 | -9 | 18 | -9 | -23.36 | 305.47 | -9.74 | 161.52 | 0.4921 | -1503.2 | 999999 | |
| 0 | 11 | 0 | 6 | -21.98 | 305.36 | -9.85 | 160.31 | 0.4728 | -672.0 | -699.1 | |
| 0 | 4 | 0 | 3 | -21.51 | 305.31 | -9.90 | 159.84 | 0.4663 | 132.0 | 167.6 | |
| 6 | -9 | 4 | -9 | -22.63 | 305.06 | -10.15 | 160.26 | 0.4837 | -1295.4 | 999999 | |
| 0 | 14 | 0 | 8 | -21.60 | 304.71 | -10.50 | 158.82 | 0.4709 | -1125.0 | -867.0 | |
| 0 | 6 | 0 | 4 | -20.24 | 304.73 | -10.49 | 157.67 | 0.4513 | 732.0 | 626.5 | |
| 2 | 16 | 1 | 9 | -21.44 | 304.18 | -11.04 | 157.71 | 0.4716 | -873.0 | -693.6 | |
| 0 | 4 | 0 | 2 | -23.26 | 303.86 | -11.35 | 158.65 | 0.4990 | -224.0 | -239.6 | |
| 0 | 7 | 0 | 4 | -20.33 | 304.01 | -11.20 | 156.40 | 0.4570 | 695.0 | 562.4 | |
| 3 | 31 | 2 | 17 | -22.23 | 303.05 | -12.16 | 156.42 | 0.4894 | 1005.7 | 572.6 | |
| 2 | -20 | 1 | -20 | -22.45 | 302.78 | -12.44 | 156.14 | 0.4941 | -125.4 | 999999 | |
| 0 | 3 | 0 | 2 | -23.58 | 302.67 | -12.54 | 156.94 | 0.5102 | -587.0 | -468.7 | |
| 0 | 5 | 0 | 3 | -22.15 | 302.42 | -12.79 | 155.27 | 0.4923 | -871.0 | -665.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
