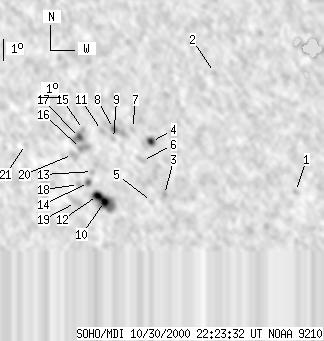

SOHO MDI 2000-10-30 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 175 | 12 | 113 | -27.90 | 293.14 | -22.07 | 147.96 | 0.6274 | 827.6 | 576.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -28.84 | 301.58 | -13.63 | 159.30 | 0.5863 | -572.0 | -452.5 | |
| 0 | 5 | 0 | 3 | -23.58 | 298.67 | -16.54 | 150.77 | 0.5364 | 606.0 | 425.3 | |
| 0 | 5 | 0 | 3 | -29.13 | 295.50 | -19.71 | 151.75 | 0.6249 | 756.0 | 715.7 | |
| 4 | 11 | 3 | 7 | -26.72 | 295.36 | -19.85 | 149.39 | 0.5980 | 938.7 | 794.9 | |
| 0 | 2 | 0 | 2 | -29.47 | 294.82 | -20.39 | 151.26 | 0.6332 | 473.0 | 457.2 | |
| 0 | 8 | 0 | 5 | -27.59 | 294.78 | -20.43 | 149.51 | 0.6121 | 654.0 | 609.2 | |
| 0 | 3 | 0 | 2 | -26.15 | 294.59 | -20.62 | 147.90 | 0.5972 | 840.0 | 768.2 | |
| 0 | 18 | 0 | 11 | -26.18 | 293.71 | -21.50 | 146.87 | 0.6041 | 1064.0 | 877.7 | |
| 0 | 3 | 0 | 2 | -26.63 | 293.62 | -21.59 | 147.22 | 0.6098 | 570.0 | 465.6 | |
| 6 | 44 | 4 | 29 | -29.54 | 292.57 | -22.65 | 148.80 | 0.6491 | 891.9 | 499.2 | |
| 0 | 5 | 0 | 3 | -26.29 | 293.14 | -22.08 | 146.30 | 0.6097 | 731.0 | 639.1 | |
| 6 | -10 | 4 | -10 | -29.27 | 292.29 | -22.92 | 148.26 | 0.6481 | 860.4 | 999999 | |
| 0 | 3 | 0 | 2 | -28.17 | 292.31 | -22.90 | 147.23 | 0.6362 | 706.0 | 560.3 | |
| 0 | 6 | 0 | 4 | -28.68 | 292.00 | -23.21 | 147.39 | 0.6439 | 705.0 | 655.3 | |
| 0 | 4 | 0 | 2 | -26.27 | 292.30 | -22.91 | 145.33 | 0.6160 | 789.0 | 707.6 | |
| 0 | 12 | 0 | 7 | -27.13 | 291.98 | -23.24 | 145.84 | 0.6277 | 841.0 | 787.7 | |
| 2 | 11 | 1 | 7 | -26.64 | 292.04 | -23.18 | 145.41 | 0.6219 | 917.0 | 709.5 | |
| 0 | 4 | 0 | 3 | -28.79 | 291.50 | -23.72 | 146.95 | 0.6487 | 468.0 | 504.6 | |
| 0 | 13 | 0 | 9 | -29.63 | 291.14 | -24.07 | 147.38 | 0.6600 | 195.0 | 355.4 | |
| 0 | 11 | 0 | 7 | -27.42 | 291.53 | -23.68 | 145.64 | 0.6341 | 626.0 | 528.8 | |
| 0 | 3 | 0 | 2 | -27.04 | 289.38 | -25.84 | 142.99 | 0.6471 | 562.0 | 508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
