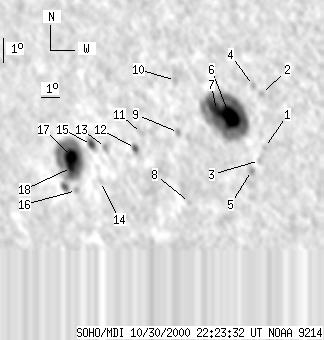

SOHO MDI 2000-10-30 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71 | 474 | 48 | 327 | -10.61 | 274.04 | -41.18 | 110.45 | 0.6908 | -337.1 | -87.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-30 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -10.79 | 279.43 | -35.79 | 113.33 | 0.6279 | -667.0 | -543.7 | |
| 0 | 4 | 0 | 3 | -8.64 | 279.55 | -35.67 | 110.14 | 0.6163 | -100.0 | -132.1 | |
| 0 | 3 | 0 | 2 | -11.32 | 279.11 | -36.11 | 113.94 | 0.6345 | -595.0 | -523.8 | |
| 0 | 4 | 0 | 3 | -8.34 | 279.20 | -36.02 | 109.50 | 0.6195 | 454.0 | 214.3 | |
| 0 | 6 | 0 | 4 | -11.74 | 278.65 | -36.56 | 114.29 | 0.6422 | -594.0 | -498.6 | |
| 30 | 240 | 20 | 155 | -9.67 | 277.92 | -37.30 | 110.86 | 0.6416 | -1532.2 | -529.7 | |
| 11 | -6 | 7 | -6 | -9.42 | 277.26 | -37.96 | 110.17 | 0.6488 | -997.7 | 999999 | |
| 0 | 3 | 0 | 2 | -13.19 | 275.27 | -39.94 | 114.50 | 0.6893 | -564.0 | -457.5 | |
| 0 | 5 | 0 | 4 | -10.39 | 275.20 | -40.01 | 110.60 | 0.6780 | -283.0 | -332.1 | |
| 0 | 5 | 0 | 3 | -8.33 | 275.33 | -39.88 | 107.72 | 0.6684 | -517.0 | -584.7 | |
| 0 | 9 | 0 | 6 | -10.54 | 273.25 | -41.96 | 109.93 | 0.7017 | 638.0 | 483.7 | |
| 3 | 8 | 2 | 6 | -11.16 | 272.82 | -42.39 | 110.59 | 0.7090 | 645.9 | 521.4 | |
| 0 | 7 | 0 | 5 | -11.20 | 271.19 | -44.02 | 109.98 | 0.7277 | 626.0 | 589.1 | |
| 0 | 3 | 0 | 2 | -12.59 | 270.63 | -44.59 | 111.57 | 0.7390 | 784.0 | 708.8 | |
| 5 | 11 | 3 | 8 | -11.13 | 270.43 | -44.78 | 109.58 | 0.7359 | 679.2 | 542.2 | |
| 0 | 4 | 0 | 3 | -13.04 | 269.17 | -46.04 | 111.54 | 0.7563 | 489.0 | 493.1 | |
| 15 | 159 | 11 | 119 | -11.67 | 269.20 | -46.02 | 109.82 | 0.7514 | 1170.6 | 379.3 | |
| 7 | -17 | 5 | -17 | -12.12 | 269.10 | -46.12 | 110.35 | 0.7539 | 899.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
