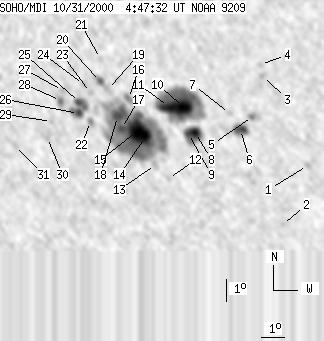

SOHO MDI 2000-10-31 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127 | 771 | 72 | 433 | -22.99 | 305.99 | -5.71 | 168.76 | 0.4712 | -1226.5 | -588.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -24.90 | 312.70 | 1.00 | 181.85 | 0.4913 | -694.0 | -761.3 | |
| 0 | 3 | 0 | 2 | -27.55 | 311.63 | -0.07 | 179.89 | 0.5309 | -813.0 | -717.1 | |
| 0 | 4 | 0 | 2 | -21.04 | 310.81 | -0.89 | 178.07 | 0.4312 | -782.0 | -718.9 | |
| 0 | 4 | 0 | 2 | -20.53 | 310.73 | -0.97 | 177.85 | 0.4232 | -768.0 | -636.5 | |
| 0 | 5 | 0 | 3 | -22.76 | 310.38 | -1.32 | 177.34 | 0.4585 | -912.0 | -768.8 | |
| 9 | 23 | 5 | 13 | -23.33 | 309.87 | -1.83 | 176.40 | 0.4677 | -1122.1 | -799.7 | |
| 0 | 4 | 0 | 2 | -22.63 | 309.42 | -2.28 | 175.39 | 0.4575 | -715.0 | -727.7 | |
| 11 | 39 | 6 | 22 | -23.46 | 307.98 | -3.72 | 172.74 | 0.4726 | -1207.3 | -467.4 | |
| 3 | -8 | 2 | -8 | -23.51 | 307.68 | -4.02 | 172.18 | 0.4739 | -711.8 | 999999 | |
| 23 | 191 | 13 | 106 | -22.38 | 307.51 | -4.19 | 171.46 | 0.4570 | -1676.0 | -877.8 | |
| 18 | -10 | 10 | -10 | -22.34 | 306.88 | -4.82 | 170.20 | 0.4579 | -1494.1 | 999999 | |
| 0 | 3 | 0 | 2 | -25.50 | 306.76 | -4.94 | 171.13 | 0.5059 | -624.0 | -473.2 | |
| 0 | 5 | 0 | 3 | -24.88 | 306.23 | -5.46 | 169.97 | 0.4980 | -200.0 | -295.9 | |
| 37 | 374 | 21 | 211 | -23.65 | 305.87 | -5.83 | 168.78 | 0.4807 | -1648.3 | -556.5 | |
| -14 | -14 | -14 | -14 | -23.44 | 305.49 | -6.20 | 167.99 | 0.4786 | 999999 | 999999 | |
| 0 | 9 | 0 | 5 | -22.01 | 305.23 | -6.47 | 166.75 | 0.4580 | -1081.0 | -1027.5 | |
| 6 | -14 | 3 | -14 | -23.31 | 304.87 | -6.83 | 166.76 | 0.4788 | -896.7 | 999999 | |
| 8 | -14 | 5 | -14 | -22.79 | 304.73 | -6.97 | 166.21 | 0.4716 | -813.8 | 999999 | |
| 0 | 9 | 0 | 5 | -21.63 | 304.37 | -7.33 | 164.84 | 0.4556 | -696.0 | -706.8 | |
| 3 | 9 | 2 | 5 | -21.29 | 304.09 | -7.61 | 164.08 | 0.4517 | -976.7 | -847.6 | |
| 0 | 4 | 0 | 2 | -20.31 | 304.14 | -7.56 | 163.52 | 0.4368 | 523.0 | 408.3 | |
| 0 | 9 | 0 | 5 | -23.02 | 303.57 | -8.13 | 164.19 | 0.4795 | 283.0 | 24.9 | |
| 0 | 4 | 0 | 2 | -21.77 | 303.65 | -8.05 | 163.53 | 0.4607 | -608.0 | -420.3 | |
| 0 | 4 | 0 | 2 | -21.43 | 303.37 | -8.33 | 162.77 | 0.4569 | -714.0 | -717.7 | |
| 5 | 40 | 3 | 23 | -22.21 | 303.16 | -8.54 | 162.89 | 0.4693 | 869.9 | 309.3 | |
| 4 | -25 | 2 | -25 | -22.68 | 303.09 | -8.61 | 163.08 | 0.4766 | 377.6 | 999999 | |
| 0 | 3 | 0 | 2 | -21.70 | 302.48 | -9.22 | 161.25 | 0.4651 | 14.0 | -158.3 | |
| 0 | 8 | 0 | 4 | -22.13 | 302.36 | -9.33 | 161.36 | 0.4720 | -717.0 | -410.8 | |
| 0 | 3 | 0 | 2 | -23.04 | 301.92 | -9.78 | 161.21 | 0.4874 | -565.0 | -485.6 | |
| 0 | 4 | 0 | 3 | -23.74 | 301.70 | -10.00 | 161.32 | 0.4984 | -678.0 | -623.3 | |
| 0 | 6 | 0 | 3 | -24.11 | 300.29 | -11.41 | 159.22 | 0.5108 | -250.0 | -189.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
