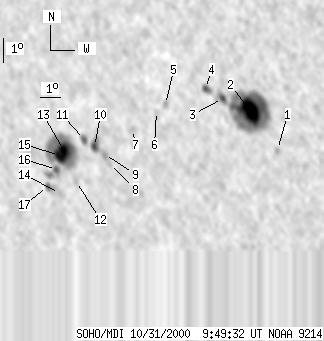

SOHO MDI 2000-10-31 09:49:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72 | 447 | 45 | 280 | -10.77 | 273.86 | -35.07 | 113.82 | 0.6168 | -225.2 | -65.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 09:49:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -11.19 | 279.62 | -29.31 | 118.29 | 0.5475 | -686.0 | -635.8 | |
| 33 | 196 | 19 | 116 | -9.68 | 278.56 | -30.37 | 114.98 | 0.5520 | -1607.5 | -583.9 | |
| 3 | 14 | 2 | 8 | -9.25 | 277.33 | -31.61 | 113.43 | 0.5660 | -870.8 | -680.9 | |
| 4 | 10 | 2 | 6 | -8.89 | 276.58 | -32.35 | 112.36 | 0.5739 | -635.6 | -560.9 | |
| 0 | 5 | 0 | 3 | -9.61 | 274.63 | -34.30 | 112.33 | 0.6030 | -721.0 | -584.2 | |
| 0 | 8 | 0 | 5 | -9.90 | 274.17 | -34.77 | 112.52 | 0.6104 | -311.0 | -256.3 | |
| 0 | 9 | 0 | 6 | -10.68 | 272.91 | -36.02 | 112.98 | 0.6300 | -360.0 | -244.9 | |
| 0 | 3 | 0 | 2 | -12.10 | 271.57 | -37.37 | 114.30 | 0.6535 | 688.0 | 607.1 | |
| 0 | 7 | 0 | 4 | -11.75 | 271.38 | -37.56 | 113.70 | 0.6541 | 953.0 | 724.1 | |
| 4 | 17 | 3 | 11 | -11.45 | 270.93 | -38.01 | 113.03 | 0.6581 | 942.9 | 696.0 | |
| 3 | 8 | 2 | 5 | -11.19 | 270.47 | -38.47 | 112.42 | 0.6625 | 717.4 | 614.0 | |
| 0 | 3 | 0 | 2 | -12.91 | 269.76 | -39.17 | 114.46 | 0.6788 | 318.0 | 325.2 | |
| 20 | 124 | 14 | 83 | -11.65 | 269.33 | -39.61 | 112.49 | 0.6782 | 1210.3 | 461.2 | |
| 0 | 6 | 0 | 4 | -13.44 | 268.78 | -40.15 | 114.68 | 0.6926 | 492.0 | 333.4 | |
| -13 | -13 | -13 | -13 | -11.90 | 269.08 | -39.86 | 112.72 | 0.6823 | 999999 | 999999 | |
| 3 | 23 | 2 | 16 | -12.47 | 268.82 | -40.12 | 113.38 | 0.6878 | 722.1 | 391.4 | |
| 2 | 10 | 1 | 7 | -13.19 | 268.21 | -40.73 | 114.05 | 0.6980 | 336.0 | 383.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
