SOHO MDI 2000-10-31 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63 | 420 | 38 | 259 | -10.71 | 274.10 | -33.20 | 114.88 | 0.5927 | -238.1 | -84.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 12:47:32 UT |

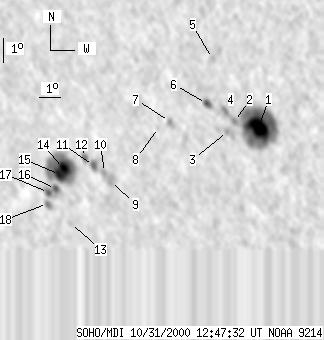

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30 | 184 | 17 | 107 | -9.66 | 278.74 | -28.57 | 116.29 | 0.5279 | -1611.7 | -660.7 | |
| 0 | 7 | 0 | 4 | -9.46 | 277.69 | -29.62 | 115.14 | 0.5407 | -818.0 | -672.0 | |
| 0 | 12 | 0 | 7 | -9.87 | 277.33 | -29.98 | 115.57 | 0.5479 | -692.0 | -453.7 | |
| 0 | 9 | 0 | 5 | -9.04 | 277.27 | -30.03 | 114.13 | 0.5438 | -800.0 | -694.5 | |
| 0 | 5 | 0 | 3 | -7.01 | 276.90 | -30.41 | 110.37 | 0.5380 | -597.0 | -519.4 | |
| 3 | 9 | 2 | 5 | -8.80 | 276.48 | -30.83 | 113.17 | 0.5530 | -723.8 | -579.3 | |
| 0 | 8 | 0 | 5 | -9.58 | 274.70 | -32.60 | 113.30 | 0.5808 | -677.0 | -550.6 | |
| 0 | 2 | 0 | 1 | -9.84 | 274.16 | -33.15 | 113.38 | 0.5892 | -370.0 | -347.7 | |
| 0 | 13 | 0 | 8 | -12.11 | 271.57 | -35.74 | 115.24 | 0.6337 | 814.0 | 655.4 | |
| 0 | 6 | 0 | 4 | -11.76 | 271.33 | -35.98 | 114.59 | 0.6348 | 814.0 | 855.4 | |
| 3 | 10 | 2 | 6 | -11.50 | 270.83 | -36.48 | 113.93 | 0.6397 | 833.5 | 667.5 | |
| 0 | 7 | 0 | 5 | -11.20 | 270.48 | -36.82 | 113.29 | 0.6425 | 881.0 | 604.9 | |
| 0 | 3 | 0 | 2 | -13.91 | 269.27 | -38.04 | 116.45 | 0.6704 | 322.0 | 231.8 | |
| 8 | 113 | 5 | 75 | -11.70 | 269.32 | -37.99 | 113.38 | 0.6590 | 1454.8 | 522.4 | |
| 13 | -14 | 8 | -14 | -11.95 | 269.07 | -38.23 | 113.61 | 0.6631 | 993.0 | 999999 | |
| 3 | 25 | 2 | 17 | -12.52 | 268.77 | -38.54 | 114.25 | 0.6694 | 805.8 | 480.0 | |
| 3 | -16 | 2 | -16 | -12.70 | 268.38 | -38.92 | 114.30 | 0.6748 | 457.3 | 999999 | |
| 0 | 7 | 0 | 5 | -13.15 | 268.25 | -39.06 | 114.85 | 0.6785 | 434.0 | 417.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
