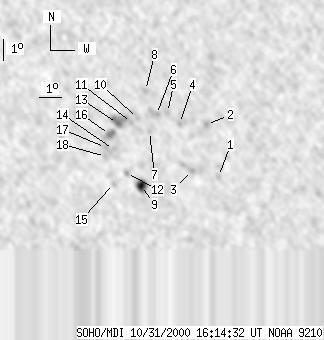

SOHO MDI 2000-10-31 16:14:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 140 | 5 | 87 | -27.72 | 292.86 | -12.55 | 160.02 | 0.5653 | 834.9 | 727.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 16:14:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -29.16 | 296.05 | -9.36 | 165.55 | 0.5712 | 780.0 | 738.1 | |
| 0 | 5 | 0 | 3 | -26.79 | 295.74 | -9.68 | 163.78 | 0.5394 | 765.0 | 681.2 | |
| 0 | 14 | 0 | 9 | -28.90 | 294.87 | -10.54 | 163.68 | 0.5721 | 843.0 | 733.0 | |
| 0 | 5 | 0 | 3 | -26.77 | 294.55 | -10.86 | 161.92 | 0.5442 | 859.0 | 706.1 | |
| 0 | 4 | 0 | 3 | -26.28 | 294.07 | -11.34 | 160.86 | 0.5397 | 543.0 | 676.4 | |
| 0 | 11 | 0 | 7 | -26.38 | 293.58 | -11.83 | 160.16 | 0.5435 | 927.0 | 824.2 | |
| 0 | 3 | 0 | 2 | -27.15 | 293.19 | -12.22 | 160.11 | 0.5559 | 542.0 | 565.0 | |
| 0 | 5 | 0 | 3 | -25.31 | 293.21 | -12.20 | 158.82 | 0.5309 | 811.0 | 714.1 | |
| 9 | 19 | 5 | 12 | -29.64 | 292.53 | -12.88 | 160.82 | 0.5920 | 880.0 | 561.9 | |
| 0 | 10 | 0 | 6 | -26.57 | 292.72 | -12.69 | 159.00 | 0.5505 | 696.0 | 768.6 | |
| 0 | 4 | 0 | 2 | -26.76 | 292.44 | -12.98 | 158.71 | 0.5545 | 768.0 | 744.3 | |
| 0 | 4 | 0 | 3 | -29.09 | 291.92 | -13.49 | 159.62 | 0.5878 | 877.0 | 602.0 | |
| 0 | 21 | 0 | 12 | -26.81 | 291.81 | -13.60 | 157.84 | 0.5586 | 948.0 | 941.1 | |
| 0 | 3 | 0 | 2 | -28.00 | 291.48 | -13.93 | 158.25 | 0.5759 | 707.0 | 631.7 | |
| 0 | 4 | 0 | 2 | -29.57 | 291.26 | -14.15 | 159.06 | 0.5972 | 530.0 | 463.6 | |
| 0 | 11 | 0 | 7 | -27.32 | 291.39 | -14.02 | 157.61 | 0.5675 | 1046.0 | 838.4 | |
| 0 | 4 | 0 | 3 | -27.91 | 291.13 | -14.28 | 157.70 | 0.5766 | 756.0 | 762.2 | |
| 0 | 8 | 0 | 5 | -28.33 | 291.07 | -14.34 | 157.92 | 0.5823 | 666.0 | 592.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
