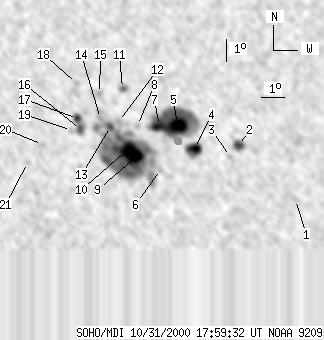

SOHO MDI 2000-10-31 17:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103 | 658 | 57 | 369 | -23.03 | 305.95 | 1.49 | 182.97 | 0.4626 | -1384.1 | -616.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 17:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | -25.66 | 312.51 | 8.05 | 194.20 | 0.5169 | -401.0 | -406.5 | |
| 7 | 15 | 4 | 9 | -23.26 | 309.95 | 5.49 | 190.76 | 0.4730 | -1129.8 | -765.0 | |
| 0 | 3 | 0 | 2 | -23.74 | 309.63 | 5.18 | 189.96 | 0.4793 | 481.0 | 433.5 | |
| 13 | 32 | 7 | 18 | -23.38 | 308.10 | 3.65 | 187.16 | 0.4703 | -1143.7 | -576.2 | |
| 25 | 175 | 14 | 97 | -22.38 | 307.36 | 2.91 | 185.97 | 0.4536 | -1849.5 | -838.0 | |
| 0 | 3 | 0 | 2 | -24.29 | 306.69 | 2.23 | 184.24 | 0.4822 | 64.0 | 81.0 | |
| 11 | -5 | 6 | -5 | -22.42 | 306.61 | 2.16 | 184.43 | 0.4532 | -1582.1 | 999999 | |
| 0 | 4 | 0 | 2 | -22.38 | 305.70 | 1.24 | 182.56 | 0.4516 | -845.0 | -861.9 | |
| 36 | 355 | 20 | 199 | -23.72 | 305.67 | 1.21 | 182.36 | 0.4725 | -1677.1 | -619.5 | |
| -9 | -9 | -9 | -9 | -23.42 | 305.29 | 0.83 | 181.64 | 0.4675 | 999999 | 999999 | |
| 0 | 7 | 0 | 4 | -20.79 | 305.06 | 0.61 | 181.35 | 0.4263 | 649.0 | 547.4 | |
| 0 | 4 | 0 | 2 | -22.20 | 304.90 | 0.45 | 180.94 | 0.4485 | -932.0 | -981.0 | |
| 3 | -9 | 2 | -9 | -22.42 | 304.57 | 0.12 | 180.24 | 0.4518 | -1314.7 | 999999 | |
| 0 | 11 | 0 | 6 | -22.07 | 304.16 | -0.30 | 179.38 | 0.4464 | -909.0 | -854.5 | |
| 0 | 6 | 0 | 3 | -21.00 | 304.12 | -0.34 | 179.27 | 0.4296 | -814.0 | -679.1 | |
| 4 | 26 | 2 | 15 | -22.55 | 303.32 | -1.13 | 177.69 | 0.4542 | 580.6 | 479.4 | |
| 4 | -16 | 2 | -16 | -22.07 | 303.20 | -1.25 | 177.39 | 0.4469 | 864.9 | 999999 | |
| 0 | 3 | 0 | 2 | -20.58 | 303.17 | -1.28 | 177.15 | 0.4233 | -828.0 | -534.3 | |
| 0 | 4 | 0 | 2 | -22.59 | 302.94 | -1.51 | 176.93 | 0.4552 | -321.0 | -405.0 | |
| 0 | 4 | 0 | 3 | -23.20 | 301.72 | -2.73 | 174.59 | 0.4660 | -645.0 | -594.0 | |
| 0 | 4 | 0 | 2 | -23.99 | 301.07 | -3.38 | 173.52 | 0.4792 | -626.0 | -480.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
