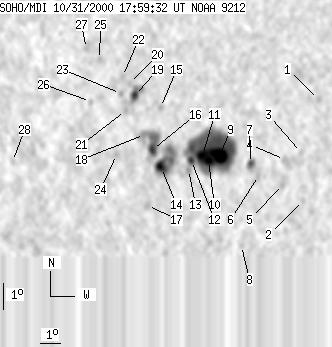

SOHO MDI 2000-10-31 17:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57 | 492 | 35 | 310 | 10.01 | 267.25 | -37.20 | 79.14 | 0.6081 | 657.0 | 363.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 17:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 12.19 | 273.21 | -31.24 | 73.76 | 0.5302 | 756.0 | 586.9 | |
| 0 | 3 | 0 | 2 | 8.26 | 272.95 | -31.50 | 81.23 | 0.5253 | 520.0 | 501.8 | |
| 0 | 3 | 0 | 2 | 10.11 | 272.68 | -31.78 | 77.81 | 0.5325 | 796.0 | 686.4 | |
| 0 | 13 | 0 | 8 | 9.81 | 271.92 | -32.53 | 78.55 | 0.5428 | 845.0 | 843.0 | |
| 0 | 4 | 0 | 3 | 8.84 | 271.93 | -32.52 | 80.33 | 0.5410 | 868.0 | 739.3 | |
| 0 | 5 | 0 | 3 | 9.14 | 270.78 | -33.67 | 79.99 | 0.5580 | 849.0 | 757.1 | |
| 2 | 10 | 1 | 6 | 9.59 | 270.35 | -34.10 | 79.28 | 0.5648 | 734.8 | 741.8 | |
| 0 | 4 | 0 | 2 | 6.41 | 270.23 | -34.22 | 84.94 | 0.5632 | 443.0 | 370.2 | |
| 16 | 251 | 10 | 154 | 9.84 | 268.85 | -35.61 | 79.14 | 0.5864 | 1732.8 | 639.7 | |
| 6 | -9 | 3 | -9 | 9.62 | 268.34 | -36.11 | 79.60 | 0.5930 | 1332.7 | 999999 | |
| 8 | -9 | 5 | -9 | 9.80 | 268.03 | -36.42 | 79.35 | 0.5976 | 1233.1 | 999999 | |
| 3 | -9 | 2 | -9 | 9.59 | 267.52 | -36.93 | 79.79 | 0.6043 | 779.4 | 999999 | |
| 0 | 3 | 0 | 2 | 9.23 | 267.42 | -37.04 | 80.39 | 0.6053 | 672.0 | 519.0 | |
| 9 | 66 | 6 | 42 | 9.25 | 266.08 | -38.37 | 80.55 | 0.6235 | -782.0 | 248.8 | |
| 0 | 5 | 0 | 3 | 11.56 | 265.69 | -38.76 | 76.94 | 0.6320 | -355.0 | -287.9 | |
| 7 | 29 | 4 | 19 | 9.92 | 265.54 | -38.92 | 79.55 | 0.6315 | 1050.0 | 527.8 | |
| 0 | 8 | 0 | 5 | 7.75 | 265.56 | -38.89 | 83.00 | 0.6292 | -761.0 | -585.7 | |
| 0 | 17 | 0 | 11 | 10.48 | 265.05 | -39.40 | 78.75 | 0.6388 | 171.0 | 200.9 | |
| 6 | 23 | 4 | 15 | 11.96 | 264.29 | -40.16 | 76.59 | 0.6510 | -886.1 | -752.7 | |
| 0 | 3 | 0 | 2 | 12.42 | 263.95 | -40.51 | 75.97 | 0.6562 | -791.0 | -667.4 | |
| 0 | 6 | 0 | 4 | 11.36 | 263.93 | -40.52 | 77.58 | 0.6546 | -517.0 | -409.6 | |
| 0 | 4 | 0 | 3 | 12.67 | 263.53 | -40.92 | 75.67 | 0.6619 | -624.0 | -597.8 | |
| 0 | 4 | 0 | 3 | 12.01 | 263.55 | -40.90 | 76.67 | 0.6605 | -611.0 | -607.8 | |
| 0 | 4 | 0 | 3 | 9.64 | 263.74 | -40.71 | 80.23 | 0.6549 | -715.0 | -590.3 | |
| 0 | 5 | 0 | 4 | 13.27 | 262.19 | -42.26 | 75.06 | 0.6798 | -686.0 | -600.4 | |
| 0 | 4 | 0 | 2 | 11.62 | 262.04 | -42.41 | 77.51 | 0.6790 | -574.0 | -477.9 | |
| 0 | 8 | 0 | 6 | 13.66 | 261.40 | -43.05 | 74.65 | 0.6902 | -559.0 | -415.3 | |
| 0 | 5 | 0 | 3 | 9.09 | 258.21 | -46.24 | 81.54 | 0.7234 | -347.0 | -230.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
