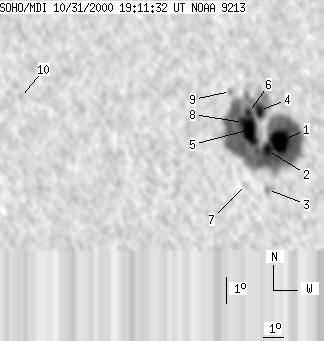

SOHO MDI 2000-10-31 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90 | 634 | 52 | 370 | 2.63 | 271.86 | -31.93 | 91.98 | 0.5308 | 1492.4 | 579.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 615 | 19 | 358 | 2.31 | 272.72 | -31.07 | 92.69 | 0.5184 | 1803.9 | 591.8 | |
| 11 | -1 | 6 | -1 | 1.94 | 272.18 | -31.61 | 93.30 | 0.5268 | 1292.4 | 999999 | |
| 0 | 6 | 0 | 4 | 0.44 | 272.20 | -31.59 | 96.15 | 0.5290 | 515.0 | 392.7 | |
| 10 | -1 | 6 | -1 | 3.47 | 271.78 | -32.02 | 90.36 | 0.5313 | 1322.2 | 999999 | |
| 31 | -1 | 18 | -1 | 2.72 | 271.35 | -32.45 | 91.72 | 0.5383 | 1421.4 | 999999 | |
| 5 | -1 | 3 | -1 | 3.37 | 271.28 | -32.52 | 90.50 | 0.5388 | 1045.9 | 999999 | |
| 0 | 5 | 0 | 3 | 0.59 | 271.20 | -32.59 | 95.63 | 0.5434 | 307.0 | 319.0 | |
| -5 | -1 | -5 | -1 | 2.98 | 271.06 | -32.73 | 91.21 | 0.5423 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | 4.15 | 270.42 | -33.38 | 89.02 | 0.5510 | 384.0 | 361.3 | |
| 0 | 3 | 0 | 2 | 3.43 | 260.04 | -43.75 | 89.55 | 0.6927 | -641.0 | -566.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
