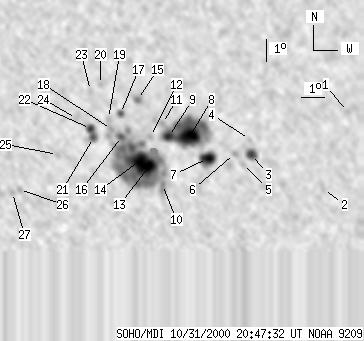

SOHO MDI 2000-10-31 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105 | 691 | 60 | 389 | -23.02 | 306.07 | 3.15 | 186.26 | 0.4646 | -1216.4 | -612.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -21.42 | 313.90 | 10.98 | 202.28 | 0.4698 | 432.0 | 377.2 | |
| 0 | 8 | 0 | 5 | -24.80 | 313.15 | 10.23 | 198.38 | 0.5135 | -621.0 | -537.8 | |
| 8 | 19 | 4 | 11 | -23.23 | 309.97 | 7.05 | 193.73 | 0.4774 | -1092.1 | -751.5 | |
| 0 | 3 | 0 | 2 | -22.58 | 309.85 | 6.93 | 193.86 | 0.4672 | -606.0 | -484.7 | |
| 0 | 6 | 0 | 4 | -23.66 | 309.61 | 6.69 | 192.84 | 0.4825 | 435.0 | 371.7 | |
| 0 | 5 | 0 | 3 | -23.18 | 309.25 | 6.33 | 192.40 | 0.4741 | -651.0 | -583.7 | |
| 14 | 33 | 8 | 18 | -23.39 | 308.12 | 5.20 | 190.16 | 0.4738 | -1079.3 | -488.5 | |
| 25 | 161 | 14 | 90 | -22.43 | 307.33 | 4.41 | 188.99 | 0.4572 | -1768.1 | -931.0 | |
| 7 | -8 | 4 | -8 | -22.42 | 306.45 | 3.54 | 187.23 | 0.4552 | -1537.9 | 999999 | |
| 0 | 12 | 0 | 7 | -24.51 | 306.25 | 3.34 | 186.28 | 0.4869 | -878.0 | -389.1 | |
| 0 | 14 | 0 | 8 | -21.86 | 306.19 | 3.27 | 186.85 | 0.4460 | -579.0 | -376.9 | |
| 0 | 4 | 0 | 2 | -22.42 | 305.70 | 2.79 | 185.71 | 0.4538 | -818.0 | -800.1 | |
| 37 | 332 | 21 | 186 | -23.68 | 305.68 | 2.77 | 185.39 | 0.4732 | -1625.7 | -643.1 | |
| -13 | -13 | -13 | -13 | -23.46 | 305.26 | 2.35 | 184.61 | 0.4693 | 999999 | 999999 | |
| 0 | 9 | 0 | 5 | -20.83 | 305.13 | 2.22 | 184.87 | 0.4281 | 571.0 | 407.5 | |
| 3 | -13 | 2 | -13 | -22.42 | 304.49 | 1.58 | 183.24 | 0.4523 | -1203.4 | 999999 | |
| 3 | 7 | 2 | 4 | -21.43 | 304.44 | 1.52 | 183.26 | 0.4367 | 415.4 | 294.8 | |
| 0 | 13 | 0 | 7 | -22.11 | 304.07 | 1.16 | 182.41 | 0.4472 | -1121.0 | -776.1 | |
| 0 | 6 | 0 | 3 | -21.64 | 303.94 | 1.03 | 182.19 | 0.4397 | -809.0 | -801.6 | |
| 0 | 4 | 0 | 2 | -20.19 | 303.61 | 0.69 | 181.56 | 0.4166 | -645.0 | -540.1 | |
| 3 | 25 | 2 | 14 | -22.46 | 303.33 | 0.41 | 180.84 | 0.4523 | 771.5 | 512.5 | |
| 5 | -21 | 3 | -21 | -22.07 | 303.20 | 0.28 | 180.59 | 0.4462 | 902.3 | 999999 | |
| 0 | 4 | 0 | 2 | -20.44 | 303.20 | 0.28 | 180.63 | 0.4205 | -760.0 | -614.2 | |
| 0 | 9 | 0 | 5 | -21.64 | 302.62 | -0.30 | 179.37 | 0.4394 | -699.0 | -564.3 | |
| 0 | 5 | 0 | 3 | -23.19 | 301.82 | -1.10 | 177.82 | 0.4640 | -770.0 | -721.9 | |
| 0 | 4 | 0 | 3 | -24.73 | 300.19 | -2.72 | 174.92 | 0.4893 | -722.0 | -593.1 | |
| 0 | 3 | 0 | 2 | -24.86 | 299.89 | -3.02 | 174.40 | 0.4917 | -493.0 | -470.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
