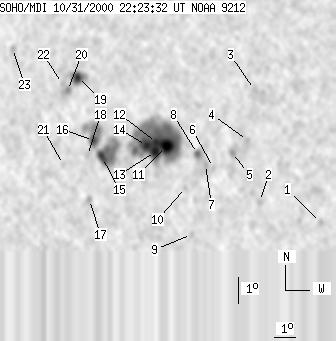

SOHO MDI 2000-10-31 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58 | 493 | 36 | 295 | 9.89 | 267.68 | -34.36 | 78.79 | 0.5686 | 672.6 | 396.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-31 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 7.15 | 276.08 | -25.95 | 82.50 | 0.4399 | 753.0 | 627.1 | |
| 0 | 6 | 0 | 3 | 7.87 | 273.36 | -28.67 | 81.47 | 0.4826 | 631.0 | 524.1 | |
| 0 | 5 | 0 | 3 | 12.19 | 272.71 | -29.32 | 72.98 | 0.5027 | 593.0 | 578.9 | |
| 0 | 3 | 0 | 2 | 10.20 | 272.62 | -29.42 | 76.92 | 0.4983 | 598.0 | 590.8 | |
| 0 | 11 | 0 | 6 | 9.71 | 271.99 | -30.04 | 78.08 | 0.5064 | 956.0 | 854.1 | |
| 0 | 4 | 0 | 2 | 9.10 | 271.19 | -30.85 | 79.47 | 0.5171 | 389.0 | 519.5 | |
| 0 | 5 | 0 | 3 | 9.20 | 270.82 | -31.22 | 79.36 | 0.5227 | 873.0 | 843.2 | |
| 3 | 9 | 2 | 5 | 9.61 | 270.41 | -31.63 | 78.67 | 0.5294 | 844.8 | 780.6 | |
| 0 | 4 | 0 | 2 | 6.48 | 270.41 | -31.63 | 84.62 | 0.5255 | 420.0 | 279.4 | |
| 0 | 3 | 0 | 2 | 8.28 | 269.99 | -32.05 | 81.26 | 0.5334 | 461.0 | 407.4 | |
| 13 | 263 | 8 | 156 | 9.83 | 268.95 | -33.09 | 78.62 | 0.5509 | 1790.8 | 619.9 | |
| 5 | -11 | 3 | -11 | 9.96 | 268.46 | -33.57 | 78.49 | 0.5580 | 1432.7 | 999999 | |
| 7 | -11 | 4 | -11 | 9.61 | 268.46 | -33.58 | 79.11 | 0.5575 | 1337.8 | 999999 | |
| 5 | -11 | 3 | -11 | 9.83 | 268.01 | -34.03 | 78.82 | 0.5643 | 1202.5 | 999999 | |
| 9 | 66 | 6 | 40 | 9.27 | 265.97 | -36.07 | 80.15 | 0.5920 | -644.8 | 262.4 | |
| 8 | 46 | 5 | 28 | 9.91 | 265.45 | -36.58 | 79.17 | 0.6000 | 1070.5 | 420.9 | |
| 0 | 5 | 0 | 3 | 7.63 | 265.52 | -36.52 | 82.98 | 0.5965 | -880.0 | -650.3 | |
| 0 | 8 | 0 | 5 | 9.32 | 265.23 | -36.80 | 80.19 | 0.6022 | 645.0 | 520.9 | |
| 8 | 26 | 5 | 17 | 12.31 | 264.30 | -37.73 | 75.49 | 0.6199 | -1019.1 | -755.4 | |
| 0 | 10 | 0 | 6 | 11.79 | 263.89 | -38.15 | 76.43 | 0.6243 | -983.0 | -835.6 | |
| 0 | 3 | 0 | 2 | 8.92 | 264.10 | -37.93 | 81.00 | 0.6172 | -316.0 | -452.6 | |
| 0 | 4 | 0 | 3 | 12.05 | 263.60 | -38.44 | 76.08 | 0.6287 | -654.0 | -697.6 | |
| 0 | 6 | 0 | 4 | 13.28 | 260.78 | -41.25 | 74.81 | 0.6673 | -638.0 | -555.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
