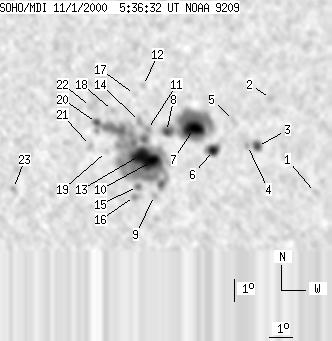

SOHO MDI 2000-11-01 05:36:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85 | 602 | 47 | 343 | -23.21 | 305.94 | 7.87 | 195.25 | 0.4803 | -1316.6 | -619.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 05:36:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | -25.31 | 312.84 | 14.76 | 205.12 | 0.5448 | -712.0 | -626.8 | |
| 0 | 7 | 0 | 4 | -21.18 | 310.46 | 12.39 | 205.05 | 0.4745 | -271.0 | -383.4 | |
| 6 | 12 | 3 | 7 | -23.24 | 310.09 | 12.02 | 202.57 | 0.5006 | -843.1 | -684.0 | |
| 0 | 3 | 0 | 2 | -23.19 | 309.66 | 11.59 | 201.88 | 0.4974 | -792.0 | -688.4 | |
| 0 | 8 | 0 | 5 | -22.10 | 308.97 | 10.90 | 201.59 | 0.4783 | -106.0 | -146.6 | |
| 8 | 22 | 4 | 13 | -23.38 | 308.23 | 10.15 | 199.26 | 0.4925 | -929.8 | -645.5 | |
| 25 | 125 | 14 | 70 | -22.42 | 307.31 | 9.23 | 198.31 | 0.4741 | -1627.9 | -858.0 | |
| 4 | 15 | 2 | 8 | -22.53 | 306.18 | 8.10 | 196.13 | 0.4707 | -1271.0 | -1063.5 | |
| 0 | 5 | 0 | 3 | -25.33 | 305.84 | 7.77 | 193.90 | 0.5103 | 269.0 | 234.8 | |
| 18 | 334 | 10 | 189 | -23.83 | 305.62 | 7.54 | 194.32 | 0.4875 | -1491.3 | -616.3 | |
| 0 | 8 | 0 | 4 | -22.44 | 305.37 | 7.30 | 194.66 | 0.4660 | -1139.0 | -801.9 | |
| 0 | 4 | 0 | 2 | -20.55 | 305.11 | 7.04 | 195.30 | 0.4366 | 41.0 | 103.8 | |
| 21 | -10 | 12 | -10 | -23.56 | 305.09 | 7.02 | 193.51 | 0.4817 | -1689.6 | 999999 | |
| 0 | 7 | 0 | 4 | -22.09 | 305.02 | 6.94 | 194.18 | 0.4594 | -905.0 | -824.0 | |
| 0 | 8 | 0 | 5 | -24.92 | 305.09 | 7.01 | 192.80 | 0.5017 | -480.0 | -247.0 | |
| 0 | 7 | 0 | 4 | -25.36 | 304.98 | 6.91 | 192.41 | 0.5079 | 529.0 | 489.8 | |
| 0 | 3 | 0 | 2 | -20.93 | 304.76 | 6.68 | 194.33 | 0.4409 | 497.0 | 392.0 | |
| 0 | 3 | 0 | 2 | -21.61 | 303.87 | 5.80 | 192.15 | 0.4480 | 345.0 | 221.3 | |
| 0 | 3 | 0 | 2 | -23.38 | 303.69 | 5.62 | 190.97 | 0.4743 | -601.0 | -513.0 | |
| 3 | -10 | 2 | -10 | -22.12 | 303.22 | 5.15 | 190.60 | 0.4538 | 724.0 | 999999 | |
| 0 | 6 | 0 | 4 | -23.11 | 303.01 | 4.93 | 189.76 | 0.4684 | 541.0 | 470.9 | |
| 0 | 11 | 0 | 6 | -21.43 | 302.95 | 4.87 | 190.34 | 0.4425 | -580.0 | -639.3 | |
| 0 | 5 | 0 | 3 | -24.98 | 299.80 | 1.73 | 183.20 | 0.4914 | -503.0 | -436.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
