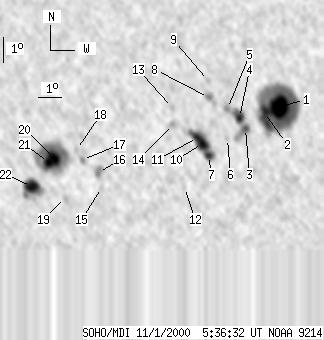

SOHO MDI 2000-11-01 05:36:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116 | 579 | 67 | 324 | -10.61 | 274.79 | -23.28 | 123.30 | 0.4634 | -108.9 | -60.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 05:36:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 244 | 20 | 132 | -9.32 | 279.27 | -18.80 | 126.01 | 0.3949 | -1916.2 | -752.1 | |
| 13 | -1 | 7 | -1 | -9.58 | 278.64 | -19.44 | 125.63 | 0.4054 | -1048.3 | 999999 | |
| 3 | 9 | 2 | 5 | -10.23 | 277.81 | -20.27 | 125.81 | 0.4222 | -890.9 | -718.7 | |
| 7 | 20 | 4 | 11 | -9.80 | 277.58 | -20.49 | 124.66 | 0.4212 | -872.0 | -625.1 | |
| 0 | 8 | 0 | 4 | -9.46 | 277.10 | -20.97 | 123.37 | 0.4245 | -747.0 | -430.6 | |
| 0 | 4 | 0 | 2 | -10.65 | 277.02 | -21.05 | 125.59 | 0.4360 | -371.0 | -367.5 | |
| 5 | 59 | 3 | 32 | -11.36 | 276.17 | -21.91 | 125.83 | 0.4531 | 882.7 | 828.0 | |
| 0 | 14 | 0 | 8 | -9.05 | 276.33 | -21.74 | 121.61 | 0.4313 | -714.0 | -618.9 | |
| 0 | 4 | 0 | 2 | -8.37 | 276.38 | -21.70 | 120.29 | 0.4254 | -412.0 | -436.8 | |
| 18 | -7 | 10 | -7 | -10.88 | 275.95 | -22.12 | 124.69 | 0.4517 | 1385.6 | 999999 | |
| -10 | -7 | -10 | -7 | -10.65 | 275.76 | -22.32 | 124.03 | 0.4522 | 999999 | 999999 | |
| 0 | 3 | 0 | 1 | -12.67 | 275.03 | -23.05 | 126.79 | 0.4789 | -246.0 | -309.6 | |
| 0 | 4 | 0 | 2 | -9.49 | 274.78 | -23.29 | 120.73 | 0.4556 | -502.0 | -454.0 | |
| 0 | 4 | 0 | 2 | -10.16 | 274.73 | -23.34 | 121.95 | 0.4616 | -593.0 | -652.3 | |
| 0 | 2 | 0 | 1 | -12.79 | 271.40 | -26.67 | 123.12 | 0.5249 | 448.0 | 441.2 | |
| 0 | 11 | 0 | 7 | -12.19 | 271.33 | -26.74 | 122.07 | 0.5211 | 964.0 | 857.1 | |
| 0 | 5 | 0 | 3 | -11.69 | 270.68 | -27.39 | 120.63 | 0.5258 | 702.0 | 592.8 | |
| 0 | 4 | 0 | 2 | -11.30 | 270.46 | -27.62 | 119.78 | 0.5259 | 647.0 | 595.4 | |
| 0 | 6 | 0 | 4 | -13.25 | 269.74 | -28.34 | 122.33 | 0.5489 | 858.0 | 528.0 | |
| 11 | 127 | 7 | 75 | -11.70 | 269.43 | -28.64 | 119.55 | 0.5418 | 1622.8 | 605.6 | |
| 7 | -20 | 4 | -20 | -11.87 | 269.14 | -28.93 | 119.59 | 0.5466 | 1114.3 | 999999 | |
| 16 | 51 | 10 | 31 | -12.86 | 268.25 | -29.83 | 120.44 | 0.5647 | 1105.0 | 567.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
