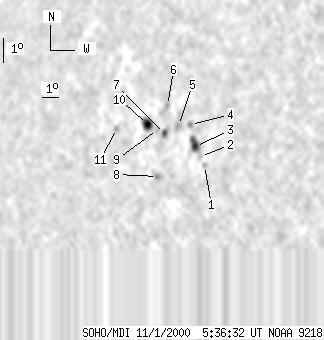

SOHO MDI 2000-11-01 05:36:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 77 | 11 | 59 | 19.52 | 249.25 | -48.82 | 67.96 | 0.7674 | -285.8 | -134.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 05:36:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 18.51 | 251.70 | -46.37 | 68.69 | 0.7392 | 544.0 | 407.2 | |
| 0 | 3 | 0 | 2 | 18.85 | 251.34 | -46.73 | 68.33 | 0.7439 | 66.0 | 307.5 | |
| 5 | 18 | 4 | 14 | 19.23 | 250.90 | -47.17 | 67.94 | 0.7495 | 427.0 | 255.2 | |
| 0 | 5 | 0 | 4 | 20.08 | 250.26 | -47.81 | 67.00 | 0.7583 | 387.0 | 269.7 | |
| 0 | 8 | 0 | 6 | 20.00 | 249.55 | -48.52 | 67.28 | 0.7655 | -614.0 | -429.9 | |
| 0 | 4 | 0 | 3 | 20.76 | 248.54 | -49.54 | 66.58 | 0.7777 | -258.0 | -377.0 | |
| 2 | 7 | 1 | 5 | 19.64 | 248.83 | -49.24 | 67.92 | 0.7722 | -648.2 | -588.7 | |
| 0 | 6 | 0 | 5 | 17.92 | 249.07 | -49.00 | 70.07 | 0.7662 | 373.0 | 297.5 | |
| 0 | 3 | 0 | 3 | 19.77 | 248.33 | -49.74 | 67.87 | 0.7776 | -441.0 | -379.4 | |
| 8 | 16 | 6 | 12 | 19.94 | 247.62 | -50.46 | 67.83 | 0.7851 | -768.6 | -568.6 | |
| 0 | 4 | 0 | 3 | 19.67 | 245.69 | -52.38 | 68.57 | 0.8036 | -302.0 | -302.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
