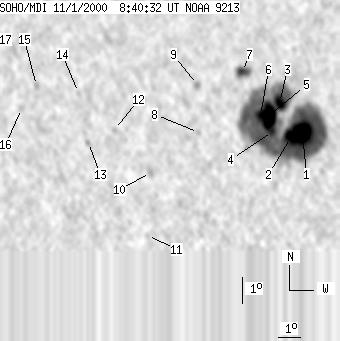

SOHO MDI 2000-11-01 08:40:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114 | 768 | 61 | 422 | 2.69 | 271.25 | -25.14 | 92.82 | 0.4264 | 1544.7 | 579.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 08:40:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 693 | 17 | 377 | 2.29 | 272.87 | -23.52 | 94.04 | 0.4015 | 2066.0 | 636.3 | |
| 14 | -1 | 8 | -1 | 2.08 | 272.37 | -24.02 | 94.43 | 0.4098 | 1444.1 | 999999 | |
| 13 | -1 | 7 | -1 | 3.42 | 271.88 | -24.52 | 91.11 | 0.4161 | 1553.4 | 999999 | |
| 6 | -1 | 3 | -1 | 2.29 | 271.60 | -24.79 | 93.75 | 0.4216 | 1171.7 | 999999 | |
| 41 | -1 | 22 | -1 | 2.86 | 271.38 | -25.01 | 92.36 | 0.4244 | 1485.8 | 999999 | |
| -5 | -1 | -5 | -1 | 2.89 | 271.08 | -25.31 | 92.24 | 0.4291 | 999999 | 999999 | |
| 8 | 20 | 4 | 11 | 4.56 | 270.26 | -26.13 | 88.33 | 0.4411 | 873.9 | 549.4 | |
| 0 | 4 | 0 | 3 | 2.15 | 268.42 | -27.97 | 93.44 | 0.4715 | -441.0 | -456.1 | |
| 0 | 6 | 0 | 3 | 3.99 | 268.32 | -28.07 | 89.50 | 0.4713 | 668.0 | 462.9 | |
| 0 | 7 | 0 | 4 | 0.53 | 266.32 | -30.07 | 96.27 | 0.5061 | 811.0 | 667.4 | |
| 0 | 3 | 0 | 2 | -1.91 | 266.17 | -30.22 | 100.96 | 0.5145 | 416.0 | 482.6 | |
| 0 | 3 | 0 | 2 | 2.12 | 264.68 | -31.71 | 92.85 | 0.5280 | 330.0 | 358.1 | |
| 0 | 5 | 0 | 3 | 1.58 | 263.51 | -32.88 | 93.68 | 0.5460 | 555.0 | 564.4 | |
| 0 | 4 | 0 | 2 | 3.48 | 262.99 | -33.40 | 90.13 | 0.5516 | -542.0 | -535.1 | |
| 0 | 6 | 0 | 4 | 3.67 | 261.01 | -35.38 | 89.66 | 0.5800 | -271.0 | -422.9 | |
| 0 | 6 | 0 | 4 | 2.75 | 260.34 | -36.05 | 91.17 | 0.5902 | -402.0 | -397.1 | |
| 0 | 11 | 0 | 7 | 5.01 | 259.84 | -36.55 | 87.33 | 0.5962 | -781.0 | -426.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
