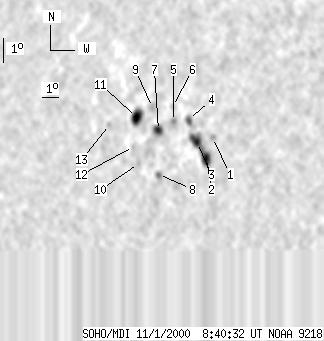

SOHO MDI 2000-11-01 08:40:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26 | 124 | 21 | 93 | 19.36 | 249.58 | -46.81 | 67.65 | 0.7457 | -197.0 | -112.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 08:40:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | 19.44 | 252.02 | -44.37 | 66.85 | 0.7196 | 195.0 | 238.6 | |
| 6 | 45 | 5 | 32 | 18.60 | 251.96 | -44.43 | 68.02 | 0.7179 | 746.8 | 310.5 | |
| 4 | -2 | 3 | -2 | 19.20 | 251.23 | -45.16 | 67.41 | 0.7276 | 554.3 | 999999 | |
| 0 | 8 | 0 | 6 | 20.09 | 250.38 | -46.01 | 66.48 | 0.7392 | 371.0 | 184.6 | |
| 0 | 5 | 0 | 4 | 19.96 | 249.54 | -46.86 | 66.89 | 0.7480 | -596.0 | -469.8 | |
| 0 | 2 | 0 | 2 | 20.55 | 249.24 | -47.15 | 66.20 | 0.7527 | -436.0 | -387.8 | |
| 6 | 12 | 5 | 9 | 19.56 | 248.78 | -47.61 | 67.61 | 0.7550 | -665.2 | -541.3 | |
| 0 | 5 | 0 | 4 | 17.83 | 249.42 | -46.97 | 69.73 | 0.7442 | 486.0 | 304.3 | |
| 0 | 8 | 0 | 6 | 20.45 | 248.05 | -48.34 | 66.65 | 0.7648 | -842.0 | -620.5 | |
| 0 | 5 | 0 | 4 | 18.19 | 248.08 | -48.31 | 69.55 | 0.7594 | -194.0 | -222.8 | |
| 10 | 24 | 8 | 18 | 20.00 | 247.24 | -49.15 | 67.43 | 0.7721 | -777.3 | -531.7 | |
| 0 | 4 | 0 | 3 | 18.85 | 247.53 | -48.86 | 68.84 | 0.7667 | -334.0 | -313.0 | |
| 0 | 2 | 0 | 2 | 19.63 | 245.68 | -50.71 | 68.26 | 0.7872 | -366.0 | -395.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
