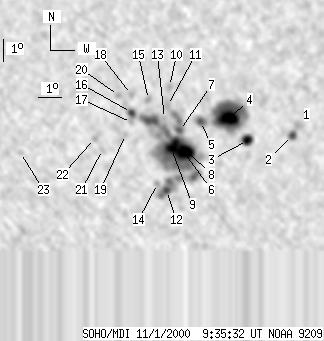

SOHO MDI 2000-11-01 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81 | 614 | 46 | 351 | -23.38 | 305.77 | 9.89 | 198.79 | 0.4915 | -1207.3 | -562.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 11 | 0 | 6 | -22.78 | 310.30 | 14.42 | 206.91 | 0.5093 | -832.0 | -615.5 | |
| 4 | 10 | 2 | 6 | -23.21 | 310.13 | 14.25 | 206.23 | 0.5138 | -858.4 | -616.9 | |
| 8 | 18 | 4 | 11 | -23.39 | 308.21 | 12.33 | 202.97 | 0.5043 | -838.8 | -598.7 | |
| 20 | 128 | 11 | 73 | -22.42 | 307.32 | 11.43 | 202.26 | 0.4856 | -1691.5 | -813.1 | |
| 4 | 14 | 2 | 8 | -22.53 | 306.14 | 10.25 | 200.08 | 0.4807 | -1234.7 | -978.9 | |
| 20 | 299 | 12 | 170 | -23.87 | 305.56 | 9.67 | 198.08 | 0.4969 | -1455.5 | -612.2 | |
| 3 | 19 | 2 | 10 | -22.91 | 305.27 | 9.39 | 198.25 | 0.4818 | -1233.6 | -1091.6 | |
| 5 | -6 | 3 | -6 | -23.39 | 305.14 | 9.25 | 197.68 | 0.4880 | -1691.4 | 999999 | |
| 10 | -6 | 6 | -6 | -23.69 | 304.99 | 9.10 | 197.21 | 0.4917 | -1549.2 | 999999 | |
| 0 | 5 | 0 | 3 | -21.01 | 304.73 | 8.84 | 198.62 | 0.4515 | 272.0 | 107.7 | |
| 0 | 13 | 0 | 8 | -21.83 | 304.70 | 8.81 | 197.95 | 0.4632 | -620.0 | -433.0 | |
| 3 | 48 | 2 | 28 | -25.54 | 304.91 | 9.02 | 195.92 | 0.5179 | 646.0 | 180.7 | |
| 0 | 3 | 0 | 2 | -22.38 | 304.61 | 8.72 | 197.39 | 0.4710 | -1125.0 | -1095.8 | |
| 0 | 4 | 0 | 3 | -25.22 | 304.50 | 8.61 | 195.42 | 0.5117 | -474.0 | -393.2 | |
| 0 | 6 | 0 | 3 | -21.56 | 303.88 | 8.00 | 196.57 | 0.4555 | 515.0 | 286.5 | |
| 4 | 9 | 2 | 5 | -22.11 | 303.20 | 7.32 | 194.90 | 0.4609 | 597.8 | 433.9 | |
| 0 | 4 | 0 | 2 | -22.54 | 303.23 | 7.34 | 194.68 | 0.4674 | 781.0 | 580.0 | |
| 0 | 3 | 0 | 2 | -21.34 | 303.16 | 7.28 | 195.29 | 0.4491 | -934.0 | -769.2 | |
| 0 | 3 | 0 | 2 | -23.06 | 303.00 | 7.11 | 193.96 | 0.4742 | 518.0 | 443.8 | |
| 0 | 4 | 0 | 2 | -21.38 | 302.62 | 6.74 | 194.19 | 0.4476 | -709.0 | -588.9 | |
| 0 | 5 | 0 | 3 | -23.70 | 302.06 | 6.17 | 191.87 | 0.4806 | -614.0 | -606.3 | |
| 0 | 4 | 0 | 2 | -23.22 | 301.70 | 5.82 | 191.42 | 0.4723 | -926.0 | -719.0 | |
| 0 | 4 | 0 | 2 | -23.81 | 298.60 | 2.72 | 185.27 | 0.4744 | 577.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
