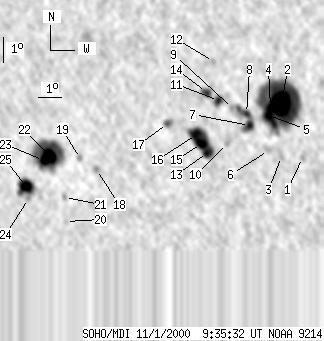

SOHO MDI 2000-11-01 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130 | 587 | 71 | 322 | -10.51 | 275.50 | -20.39 | 126.74 | 0.4256 | -79.3 | -94.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -11.46 | 280.12 | -15.77 | 135.18 | 0.3796 | -737.0 | -604.4 | |
| 36 | 254 | 19 | 135 | -9.33 | 279.37 | -16.51 | 129.57 | 0.3655 | -1979.0 | -755.6 | |
| 0 | 3 | 0 | 1 | -11.44 | 279.26 | -16.63 | 133.63 | 0.3892 | -336.0 | -297.5 | |
| 5 | -2 | 3 | -2 | -9.49 | 278.92 | -16.97 | 129.16 | 0.3729 | -1338.6 | 999999 | |
| 8 | -2 | 4 | -2 | -9.81 | 278.82 | -17.07 | 129.67 | 0.3774 | -1192.1 | 999999 | |
| 0 | 7 | 0 | 4 | -11.21 | 278.74 | -17.15 | 132.32 | 0.3929 | 433.0 | 293.0 | |
| 5 | 39 | 2 | 21 | -10.23 | 278.02 | -17.87 | 129.23 | 0.3916 | -848.9 | -676.0 | |
| 2 | -7 | 1 | -7 | -9.76 | 277.92 | -17.97 | 128.11 | 0.3881 | -895.7 | 999999 | |
| 0 | 3 | 0 | 1 | -9.57 | 277.35 | -18.53 | 126.88 | 0.3935 | -391.0 | -454.8 | |
| 0 | 3 | 0 | 2 | -10.97 | 277.06 | -18.83 | 129.23 | 0.4108 | -454.0 | -329.9 | |
| 5 | 14 | 3 | 7 | -9.27 | 276.79 | -19.09 | 125.44 | 0.3980 | -819.6 | -605.3 | |
| 0 | 5 | 0 | 3 | -7.73 | 276.67 | -19.22 | 121.97 | 0.3862 | -764.0 | -695.4 | |
| 7 | 68 | 4 | 37 | -11.35 | 276.20 | -19.68 | 128.72 | 0.4251 | 983.1 | 941.9 | |
| 5 | 11 | 3 | 6 | -8.96 | 276.31 | -19.57 | 124.14 | 0.4016 | -976.0 | -751.5 | |
| 11 | -13 | 6 | -13 | -11.00 | 275.98 | -19.91 | 127.73 | 0.4245 | 1452.3 | 999999 | |
| 11 | -13 | 6 | -13 | -10.64 | 275.79 | -20.09 | 126.81 | 0.4235 | 1392.8 | 999999 | |
| 0 | 9 | 0 | 5 | -10.24 | 274.61 | -21.28 | 124.48 | 0.4351 | -622.0 | -592.5 | |
| 0 | 5 | 0 | 3 | -12.17 | 271.42 | -24.47 | 124.30 | 0.4922 | 809.0 | 771.3 | |
| 0 | 6 | 0 | 3 | -11.75 | 270.76 | -25.12 | 122.89 | 0.4971 | 776.0 | 546.7 | |
| 0 | 3 | 0 | 2 | -14.32 | 269.82 | -26.07 | 126.16 | 0.5295 | 697.0 | 640.6 | |
| 0 | 5 | 0 | 3 | -13.34 | 269.89 | -25.99 | 124.68 | 0.5207 | 766.0 | 487.4 | |
| 21 | 113 | 12 | 65 | -11.71 | 269.46 | -26.43 | 121.54 | 0.5135 | 1478.8 | 669.9 | |
| -22 | -22 | -22 | -22 | -11.88 | 269.13 | -26.76 | 121.52 | 0.5189 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -13.44 | 268.28 | -27.60 | 123.27 | 0.5412 | 452.0 | 385.2 | |
| 14 | 33 | 8 | 20 | -12.96 | 268.25 | -27.63 | 122.47 | 0.5379 | 1208.4 | 756.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
