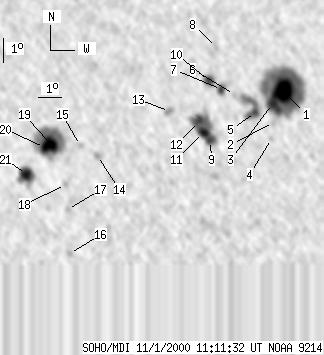

SOHO MDI 2000-11-01 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122 | 604 | 67 | 329 | -10.56 | 275.46 | -19.55 | 128.00 | 0.4155 | -173.7 | -117.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38 | 250 | 20 | 133 | -9.35 | 279.35 | -15.66 | 131.11 | 0.3551 | -1957.3 | -786.8 | |
| 0 | 4 | 0 | 2 | -10.59 | 278.88 | -16.13 | 132.84 | 0.3741 | -392.0 | -343.2 | |
| 10 | -1 | 6 | -1 | -9.84 | 278.87 | -16.13 | 131.30 | 0.3660 | -1191.0 | 999999 | |
| 0 | 4 | 0 | 2 | -11.23 | 278.76 | -16.25 | 133.89 | 0.3825 | 387.0 | 353.4 | |
| 4 | 47 | 2 | 25 | -10.21 | 278.16 | -16.85 | 130.84 | 0.3787 | -900.2 | -657.1 | |
| 0 | 4 | 0 | 2 | -9.52 | 277.34 | -17.67 | 128.07 | 0.3819 | -608.0 | -412.8 | |
| 5 | 14 | 3 | 7 | -9.33 | 276.82 | -18.19 | 126.88 | 0.3868 | -876.4 | -647.9 | |
| 0 | 7 | 0 | 4 | -7.68 | 276.69 | -18.31 | 123.08 | 0.3733 | -834.0 | -573.4 | |
| 6 | 76 | 3 | 41 | -11.37 | 276.24 | -18.77 | 130.07 | 0.4140 | 1052.3 | 890.3 | |
| 7 | 16 | 4 | 9 | -8.99 | 276.30 | -18.71 | 125.39 | 0.3903 | -1009.0 | -745.0 | |
| 8 | -9 | 4 | -9 | -11.06 | 275.97 | -19.04 | 129.08 | 0.4142 | 1330.9 | 999999 | |
| 10 | -9 | 5 | -9 | -10.63 | 275.79 | -19.22 | 127.98 | 0.4123 | 1345.8 | 999999 | |
| 0 | 7 | 0 | 4 | -10.26 | 274.61 | -20.40 | 125.63 | 0.4239 | -778.0 | -596.0 | |
| 0 | 6 | 0 | 3 | -12.11 | 271.41 | -23.60 | 125.14 | 0.4807 | 846.0 | 738.1 | |
| 0 | 4 | 0 | 2 | -11.73 | 270.71 | -24.30 | 123.71 | 0.4863 | 764.0 | 505.0 | |
| 0 | 5 | 0 | 3 | -16.13 | 269.72 | -25.29 | 129.76 | 0.5360 | -868.0 | -663.3 | |
| 0 | 5 | 0 | 3 | -14.33 | 269.86 | -25.14 | 127.14 | 0.5185 | 847.0 | 631.8 | |
| 0 | 5 | 0 | 3 | -13.32 | 269.89 | -25.11 | 125.54 | 0.5096 | 499.0 | 400.4 | |
| 21 | 112 | 12 | 64 | -11.73 | 269.45 | -25.56 | 122.41 | 0.5024 | 1482.4 | 655.2 | |
| -19 | -19 | -19 | -19 | -11.86 | 269.13 | -25.88 | 122.31 | 0.5075 | 999999 | 999999 | |
| 13 | 38 | 8 | 22 | -12.97 | 268.22 | -26.79 | 123.28 | 0.5275 | 1225.4 | 747.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
