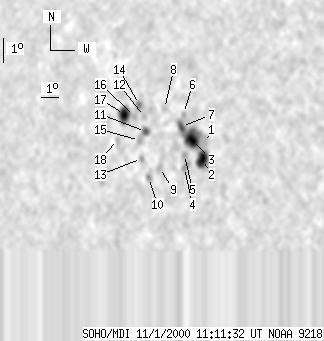

SOHO MDI 2000-11-01 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44 | 187 | 32 | 135 | 19.32 | 249.85 | -45.16 | 67.24 | 0.7276 | 27.4 | -161.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-11-01 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | 19.26 | 252.11 | -42.90 | 66.62 | 0.7025 | -370.0 | -220.6 | |
| 13 | 25 | 9 | 18 | 18.59 | 252.21 | -42.80 | 67.53 | 0.6993 | 798.6 | 448.3 | |
| 13 | 53 | 9 | 37 | 19.31 | 251.36 | -43.65 | 66.80 | 0.7111 | 278.7 | -102.9 | |
| 0 | 8 | 0 | 5 | 18.22 | 251.32 | -43.69 | 68.31 | 0.7085 | 584.0 | 537.3 | |
| 0 | 4 | 0 | 3 | 18.74 | 251.15 | -43.86 | 67.65 | 0.7118 | 325.0 | 376.1 | |
| 0 | 3 | 0 | 2 | 20.36 | 250.53 | -44.47 | 65.64 | 0.7234 | -634.0 | -598.9 | |
| 4 | -3 | 3 | -3 | 19.83 | 250.61 | -44.40 | 66.32 | 0.7210 | 171.4 | 999999 | |
| 0 | 5 | 0 | 4 | 20.50 | 249.37 | -45.64 | 65.82 | 0.7365 | -349.0 | -326.3 | |
| 0 | 6 | 0 | 4 | 18.15 | 249.92 | -45.09 | 68.80 | 0.7242 | -351.0 | -306.8 | |
| 0 | 9 | 0 | 7 | 17.73 | 249.42 | -45.59 | 69.51 | 0.7287 | 173.0 | 145.2 | |
| 2 | 9 | 2 | 7 | 19.53 | 248.61 | -46.40 | 67.32 | 0.7420 | -752.2 | -658.2 | |
| 0 | 5 | 0 | 4 | 20.12 | 248.33 | -46.68 | 66.62 | 0.7466 | -414.0 | -376.8 | |
| 0 | 5 | 0 | 3 | 18.45 | 248.77 | -46.24 | 68.70 | 0.7377 | 195.0 | 4.8 | |
| 0 | 7 | 0 | 5 | 20.58 | 247.84 | -47.17 | 66.15 | 0.7530 | -638.0 | -810.0 | |
| 0 | 6 | 0 | 5 | 19.16 | 248.39 | -46.61 | 67.87 | 0.7435 | -384.0 | -414.0 | |
| 0 | 3 | 0 | 2 | 20.09 | 247.74 | -47.27 | 66.82 | 0.7528 | -564.0 | -570.0 | |
| 12 | 26 | 9 | 20 | 20.14 | 247.11 | -47.90 | 66.93 | 0.7596 | -795.6 | -530.7 | |
| 0 | 7 | 0 | 5 | 19.13 | 247.08 | -47.93 | 68.24 | 0.7575 | -550.0 | -468.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
